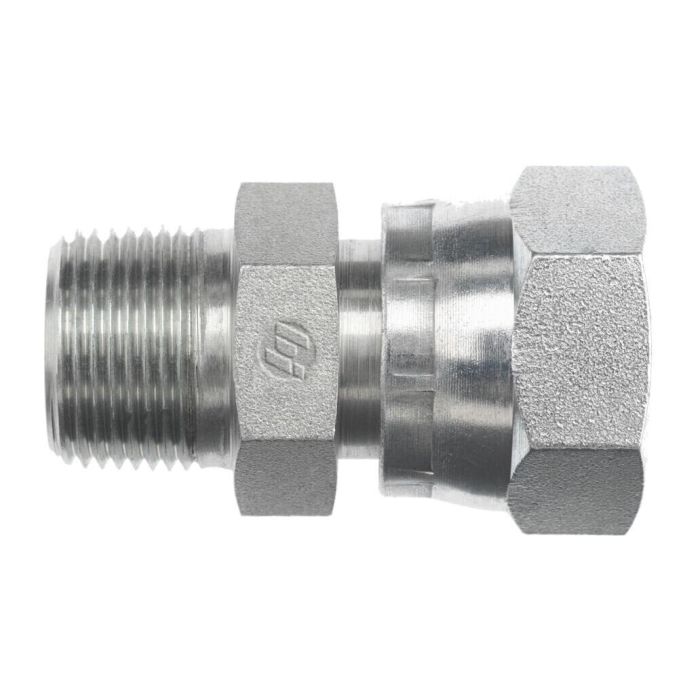

main product photo

Brennan adapter

Ask A Question

Description & Features

A straight male pipe to female face seal adapter from Brennan Industries, the FS6505-20-20 connects a 1-1/4-11-1/2 male NPT thread to a 1-11/16-12 female face seal port in a single inline configuration. With a 1-1/4 in. tube OD rating, this adapter is suited for high-pressure hydraulic line connections where a leak-free face seal termination is required on one end and a tapered pipe thread on the other.

Overall length is 2.900 in., with a 1.875 in. C hex and a 1.750 in. H hex for wrench engagement during installation. Port A has a 1.250 in. hole diameter and port B measures 1.024 in., providing clear bore geometry consistent with the Brennan FS6505 series standard.

SKU: FS6505-20-20

Supplier Part Number (MPN): FS6505-20-20

Specifications

Brand
BRENNAN
a Hole Dimensions
1-1/4 in
b Hole Dimensions
1.024 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female ORFS Swivel, MNPT
Connection Type 1
Male SAE NPTF
Connection Type 2
Female SAE ORFS Swivel
Dimension Standards
SAE J1453, SAE J476
Dimensions
2.9 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-7/8 x 1-3/4 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
4000 psi
Series
FS6505 Series
Thread Size
1-11/16-12, 1-1/4-11-1/2
Tube Outside Diameter
1-1/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
12FORFSX-12MP

FF6505-12-12

3/4 in

3/4 in

1-3/16-12 x 3/4-14

04MP-04FFSS STRAIGHT

FS6505-04-04

1/4 in

1/4 in

1/4-18 x 9/16-18

04MP-06FFSS STRAIGHT

FS6505-04-06

1/4 in

3/8 in

11/16-16, 1/4-18

08MP-08FFSS STRAIGHT

FS6505-08-08

1/2 in

1/2 in

13/16-16 x 13/16-16 x 1/2-14

16MP-16FFSS STRAIGHT

FS6505-16-16

1 in

1 in

1-7/16-12 x 1-11-1/2

Product Questions & Answers (1)

Question by: Kirk Y on Nov 2, 2025, 9:02 AM
Will this adapter handle high-pressure hydraulic setups without leaking?
Answer by: Customer Support on Nov 3, 2025, 4:39 PM
Engineered for high-pressure hydraulic line connections, this adapter ensures a leak-free face seal termination on one end and a tapered pipe thread on the other.
