16MFS-16FFSS-04FORB

Description & Features

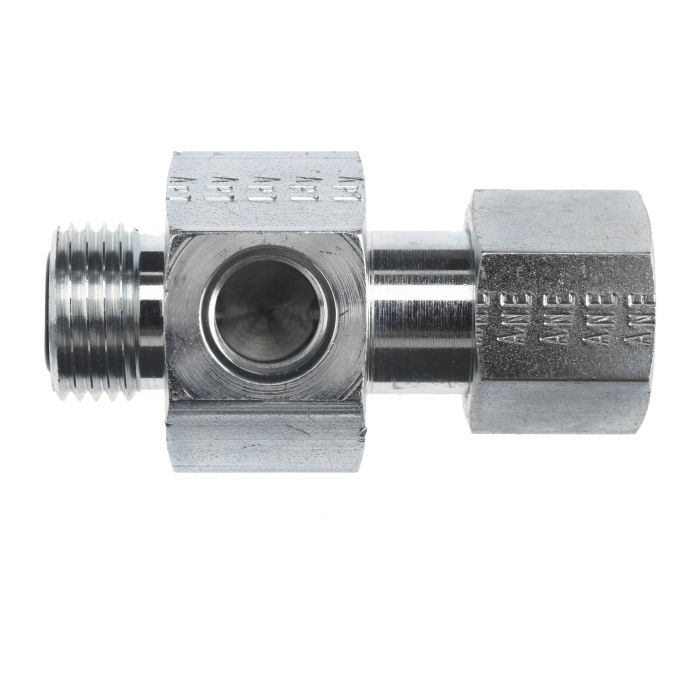

The 16MFS-16FFSS-04FORB gauge port branch tee features a Brennan A drill size of 0.811 and A thread of 1-7/16-12, along with a Brennan B drill size of 0.811 and B thread of 1-7/16-12. It also includes a 7/16-20 SAE O-ring boss (ORB) port.

This branch tee, part of the FS6564 series, has a C hex size of 1.625 and an H hex size of 1.500. The 16MFS-16FFSS-04FORB has an overall length of 2.850 inches and a tube OD of 1 inch.

SKU: FS6564-16-16-04

Supplier Part Number (MPN): FS6564-16-16-04

Alternate Part Numbers: BR-FS6564-16-16-, BR-FS6564-16-16-04, FF6564-16-16, GP4109-16-1/4ORB, GPFF2406-16-16-04FB

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS6564-16-16-04	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Hugh H on Oct 16, 2025, 6:31 AM

Reckon this'll fit on my rig if I'm already running 1-inch OD tubing?

Answer by: Customer Support on Oct 18, 2025, 6:22 AM

This gauge port branch tee is made to fit 1-inch OD tubing, so it should work for your setup.
