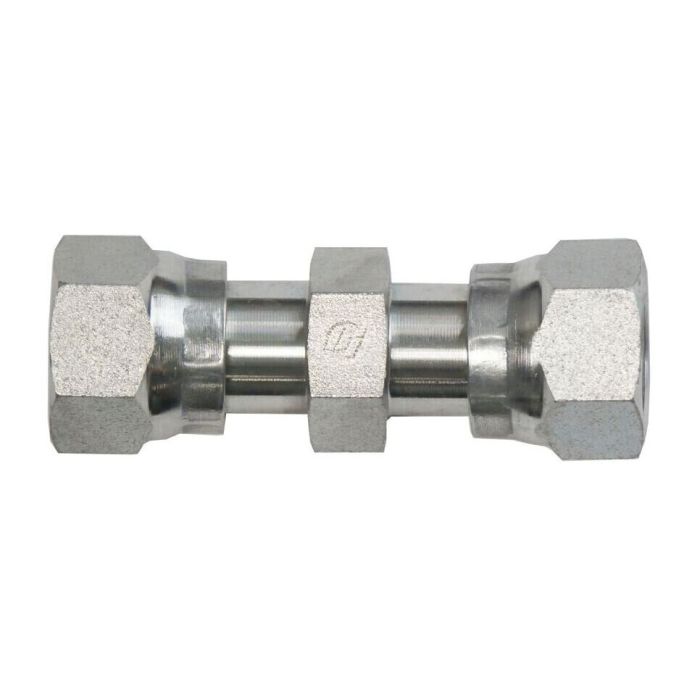

06FSS-06FSS STRAIGHT

Description & Features

The 06FSS-06FSS STRAIGHT from Brennan Industries Inc is an essential fitting in the FS6565 series engineered to meet rigorous industrial demands. With precision threading of 11/16-16 on both ends and a drill size of 0.264 this fitting ensures reliable connections.

The fitting features a hex dimension of 0.812 on the C side and 0.750 on the H side providing stability and strength in demanding applications. Its total length of 1.77 inches accommodates various systems that require a 3/8-inch tube outer diameter.

Manufactured for durability and consistent performance the 06FSS-06FSS STRAIGHT fitting is ideal for maintaining seamless function in industrial environments.

Supplier Part Number: FS6565-06-06

Specifications

Brand BRENNAN	a Drill Dimensions 0.264 in	b Drill Dimensions 0.264 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female ORFS Swivel	Connection Type 1 Female SAE ORFS Swivel	Connection Type 2 Female SAE ORFS Swivel	Dimension Standards SAE J1453	Dimensions 1.77 in L	Finish Trivalent Zinc-Plated	Fitting Type Union	Hex Size 0.812 x 0.75 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Series FS6565 Series	Thread Size 11/16-16	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Product Questions & Answers (1)

Question by: Harvey A on Mar 8, 2026, 9:36 PM

What's the hex size on the C side of this thing?

Answer by: Customer Support on Mar 10, 2026, 6:44 AM

On the C side, the hex dimension is 0.812 inches.
