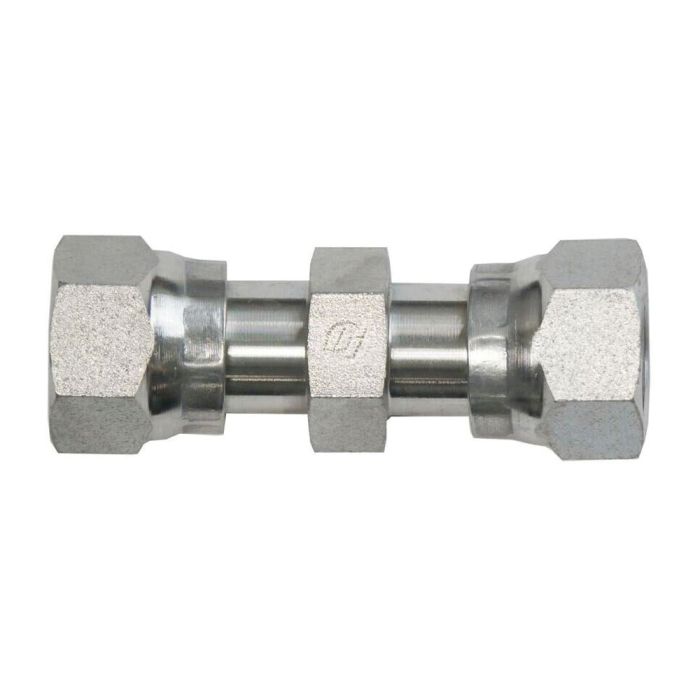

main product photo

08FSS-08FSS STRAIGHT

Ask A Question

Description & Features

This straight fitting features a 1/2 inch tube OD and is part of the FS6565 series. The 08FSS-08FSS STRAIGHT has a Brennan A drill size of 0.358 and a Brennan A thread size of 13/16-16.

Additional specifications include a Brennan B drill size of 0.358, a Brennan B thread size of 13/16-16, and a Brennan C hex size of 0.938. The fitting also features a Brennan H hex size of 0.875 and a Brennan L length of 2.120.

SKU: FS6565-08-08

Supplier Part Number (MPN): FS6565-08-08

Alternate Part Numbers: BR-FS6565-08-08

Specifications

Brand
BRENNAN
a Drill Dimensions
0.358 in
b Drill Dimensions
0.358 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female ORFS Swivel
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Female SAE ORFS Swivel
Dimension Standards
SAE J1453
Dimensions
2.12 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Union
Hex Size
0.938 x 0.88 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Series
FS6565 Series
Thread Size
13/16-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (1)

Question by: Ronnie E on Aug 25, 2025, 8:19 AM
How long is this straight fitting?
Answer by: Customer Support on Aug 26, 2025, 2:00 PM
It's 2.120 inches long, according to the specs.
