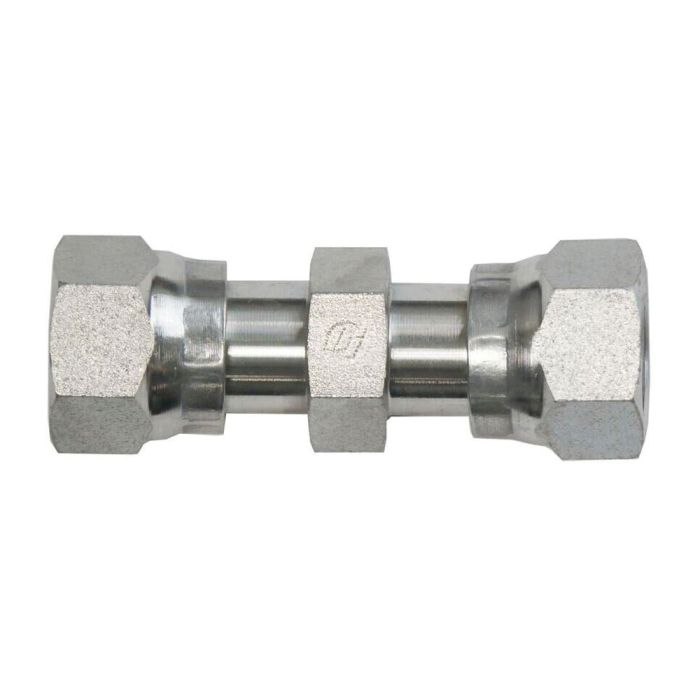

main product photo

10FSS-10FSS STRAIGHT

Ask A Question

Description & Features

Designed for same-size straight connections in hydraulic lines, the 10FSS-10FSS Straight is a female-to-female swivel fitting from Brennan's FS6565 series. Both ends feature a 1-14 thread with a 0.453 inch drill size, suited for 5/8 inch tube OD applications. The fitting measures 2.420 inches in overall length, with a 1.125 inch C hex and a 1.062 inch H hex, allowing for straightforward installation and torquing with standard tooling.

The straight configuration makes this fitting well-suited for inline connections where no change of direction is required. As part of Brennan's FS6565 series, it is built to consistent dimensional standards expected in industrial hydraulic assemblies.

SKU: FS6565-10-10

Supplier Part Number (MPN): FS6565-10-10

Alternate Part Numbers: BR-FS6565-10-10

Specifications

Brand
BRENNAN
a Drill Dimensions
0.453 in
b Drill Dimensions
0.453 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female ORFS Swivel
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Female SAE ORFS Swivel
Dimension Standards
SAE J1453
Dimensions
2.42 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Union
Hex Size
1-1/16 x 1-1/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
FS6565 Series
Thread Size
1-14S
Tube Outside Diameter
5/8 in

Product Questions & Answers (1)

Question by: Ray T on Feb 28, 2026, 4:42 PM
Is this the right fitting if I need to hook up two female ends?
Answer by: Customer Support on Mar 1, 2026, 9:13 PM
Yes, this straight fitting is designed for connecting two female ends, making it ideal for hydraulic lines where you don't need any changes in direction.
