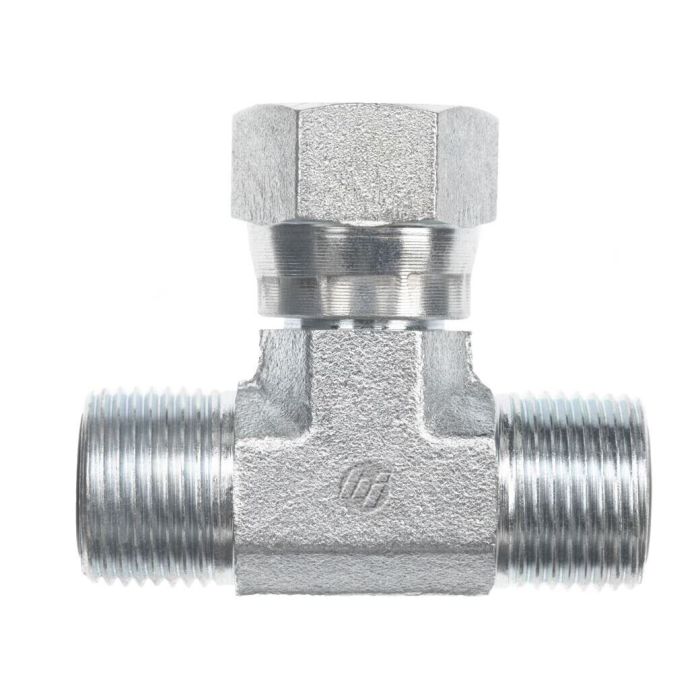

main product photo

16MFS-16MFS-16FFSS Branch Tee Forg

Ask A Question

Description & Features

The 16MFS-16MFS-16FFSS Branch Tee Forg features a robust forged construction suitable for demanding hydraulic applications. This branch tee is designed with three 1-7/16-12 threads, each with a Brennan A1 drill size of 0.811 and a Brennan B drill size of 0.783. It incorporates a Brennan C hex size of 1.625 and a Brennan Jj flats dimension of 1.438.

With a Brennan tube OD of 1 inch, this branch tee ensures secure and reliable connections. The tee has a Brennan Aaa length of 2.10 inches, a Brennan M1 length of 1.64 inches, and a Brennan M2 length of 1.64 inches, providing precise dimensions for optimal fit and performance.

SKU: FS6600-16-16-16-FG

Supplier Part Number (MPN): FS6600-16-16-16-FG

Alternate Part Numbers: AFF1857T1616S, FF6600-16-16-16

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.811 in
a2 Drill Dimensions
0.811 in
b Drill Dimensions
0.783 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Female SAE ORFS Swivel
Dimension Standards
SAE J1453
Dimensions
3.28 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1-5/8
jj Flats Dimensions
1.438 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6600-FG Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Phil W on Mar 4, 2026, 7:13 AM
Reckon this'll hold up okay in a hydraulic system running steady, not just for occasional use?
Answer by: Customer Support on Mar 5, 2026, 6:10 PM
Designed for demanding hydraulic applications, this branch tee features a robust forged construction that should provide reliable service under continuous operation.
