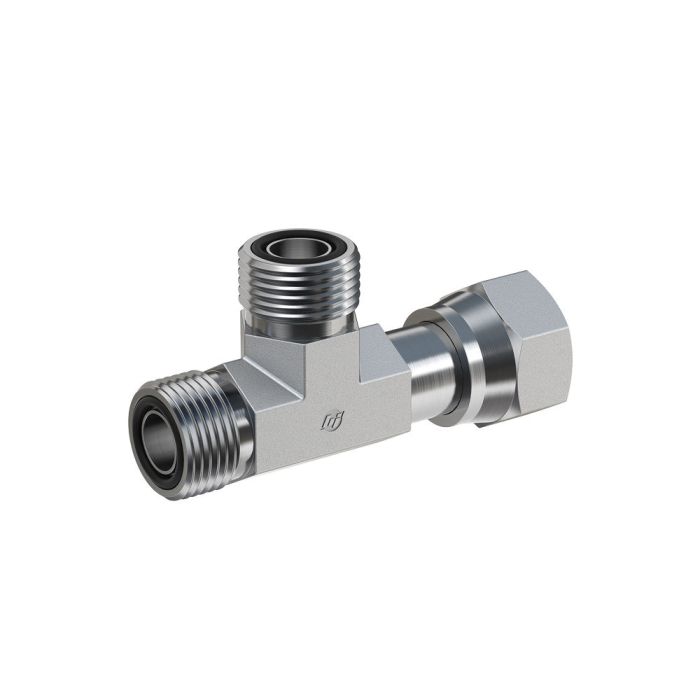

main product photo

04MFS-04FFSS-04MFS RUN TEE

Ask A Question

Description & Features

The 04MFS-04FFSS-04MFS Swivel Run Tee Forged by Brennan Industries Inc is a top-tier adapter designed for precision and reliability. Engineered with high-quality materials this run tee is part of the FS6602-FG series and features standardized threads and drills ensuring compatibility and performance.

Each component of this adapter is meticulously crafted to meet industry standards boasting thread specifications with 9/16-18 threads and precise measurements for optimal fit.

The run tee includes a hex size of 0.687 and flats size of 0.562 which contribute to its robust construct. The products overall length dimensions ensure a secure and stable connection with lengths of 1.04 0.85 and 0.85 respectively.

The tube outer diameter of this forged piece measures 1/4 allowing efficient fluid or gas transfer through connected systems.

Supplier Part Number: FS6602-04-04-04-FG

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.172 in
a2 Drill Dimensions
0.172 in
b Drill Dimensions
0.165 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Female SAE ORFS Swivel
Connection Type 3
Male SAE ORFS
Dimension Standards
SAE J1453
Dimensions
1.89 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
11/16 in
jj Flats Dimensions
0.562 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS6602-FG Series
Thread Size
9/16-18
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Product Questions & Answers (2)

Question by: Lynn F on Apr 17, 2025, 8:24 PM
what size tubing does this run tee work with, and are all three ports the same thread?
Answer by: Customer Support on Apr 19, 2025, 8:56 AM
All three ports carry 9/16-18 threads, so the threading is consistent across the tee. The tube outer diameter on this forged piece is 1/4 inch, which tells you what size tubing it's built to connect with. The two male ports share the same drill size of 0.172, and the female swivel port runs a 0.165 drill, so there is a slight difference there worth knowing before you put it in line.
Question by: Keith S on Jul 1, 2025, 9:01 AM
trying to replace a tee on a 1/4 tube line, are all three ends on this one 9/16-18?
Answer by: Customer Support on Jul 3, 2025, 6:25 AM
All three ports on the 04MFS-04FFSS-04MFS run tee are 9/16-18 thread. It is also built around a 1/4 inch tube OD, so it matches that tube size in the Brennan FS6602-FG series.
