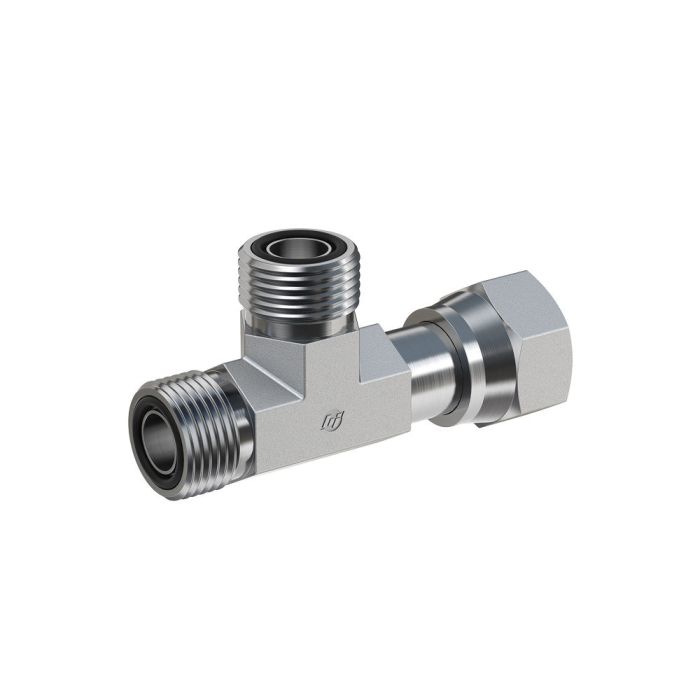

10MFS-10FFSS-10MFS RUN TEE

Manufactured by Brennan Industries, this forged swivel run tee provides a three-port inline connection in a 10MFS-10FFSS-10MFS configuration, combining male flareless swivel ends on the run ports with a female swivel branch port. Designed for 5/8 in. tube OD applications, the fitting carries 1-14 thread on both run ends and is built to the FS6602-FG series standard.

The 10MFS-10FFSS-10MFS Run Tee features a forged body construction that supports reliable performance in demanding hydraulic line assemblies. Run port lengths measure 1.31 in. on each end, with an overall run length of 1.62 in. The branch hex measures 1.125 in. and the swivel flats are 1.062 in., providing adequate wrench access during installation. Bore diameters of 0.453 in. on the run ports and 0.484 in. on the branch port accommodate fluid flow through the tee junction without significant restriction.

SKU: FS6602-10-10-10-FG

Supplier Part Number (MPN): FS6602-10-10-10-FG

Alternate Part Numbers: AFF2114T1010S, C1ED66, FF6602-10-10-10, FS6602-10, FS6602-10-FG, MI-00264938, MINO-00028F00409
