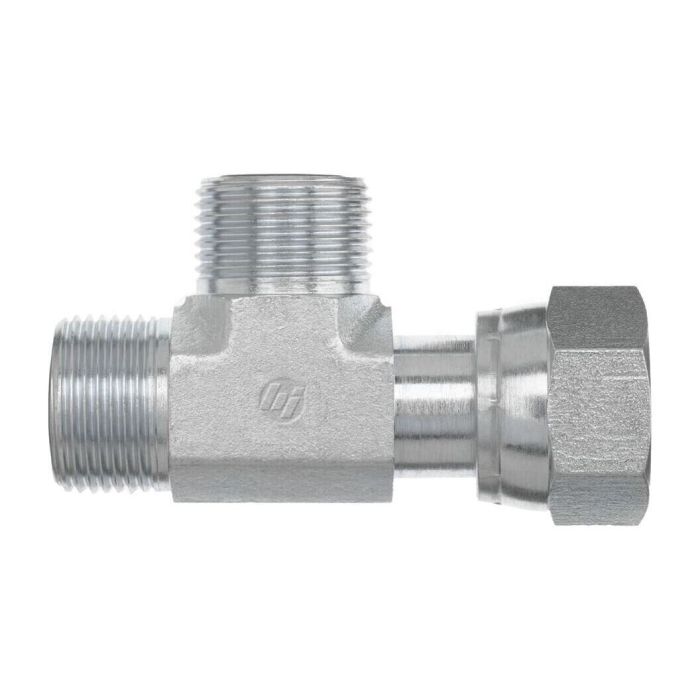

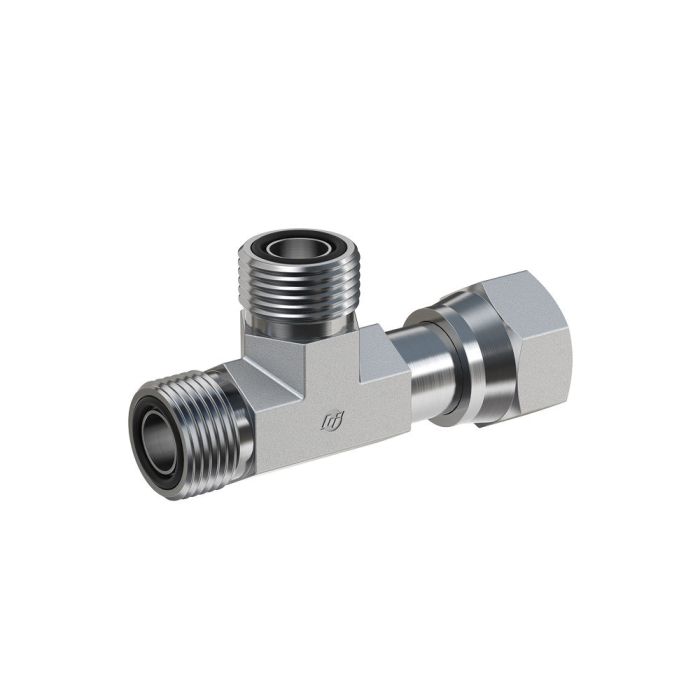

16MFS-16FFSS-16MFS RUN TEE

Ask A Question

Description & Features

Crafted for reliability, the 16MFS-16FFSS-16MFS RUN TEE features a forged swivel design, ensuring secure and efficient connections in industrial hydraulic systems. This precision-engineered run tee accommodates a 1-inch tube outer diameter, offering a robust solution for complex configurations. The consistent 1-7/16-12 threading across all connection points provides uniformity and ease of installation, enhancing compatibility with various hydraulic components.

Constructed by Brennan Industries, this run tee integrates seamlessly into demanding environments where durability is crucial. The 2.10-inch length and 1.625-inch hex size facilitate ease of handling and installation in confined spaces. With a focus on performance, it is particularly suited for high-stress applications requiring precision and reliability. Whether enhancing an existing setup or developing a new system, this run tee is a dependable choice for industry professionals.

SKU: FS6602-16-16-16-FG

Supplier Part Number (MPN): FS6602-16-16-16-FG

Alternate Part Numbers: AFF2114T1616S, C1ED68, FF6602-16-16-16, FS6602-16, FS6602-16-FG, MI-08749394, MINO-00028X96700

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.811 in
a2 Drill Dimensions
0.811 in
b Drill Dimensions
0.783 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Female SAE ORFS Swivel
Connection Type 3
Male SAE ORFS
Dimension Standards
SAE J1453
Dimensions
3.74 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1-5/8
jj Flats Dimensions
1.438 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6602-FG Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Larry T on Oct 21, 2025, 2:38 PM
Hey, will this tee work with a one-inch tube setup I got?
Answer by: Customer Support on Oct 22, 2025, 4:40 PM
This run tee is made to fit a 1-inch outer diameter tube, so it should work with your setup.
