04MFS-04MORB 90 DEG ELBOW

Description & Features

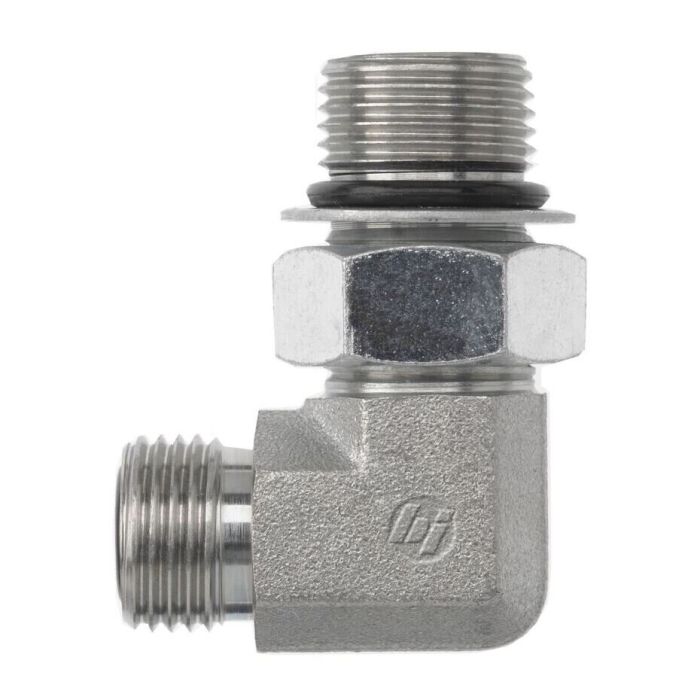

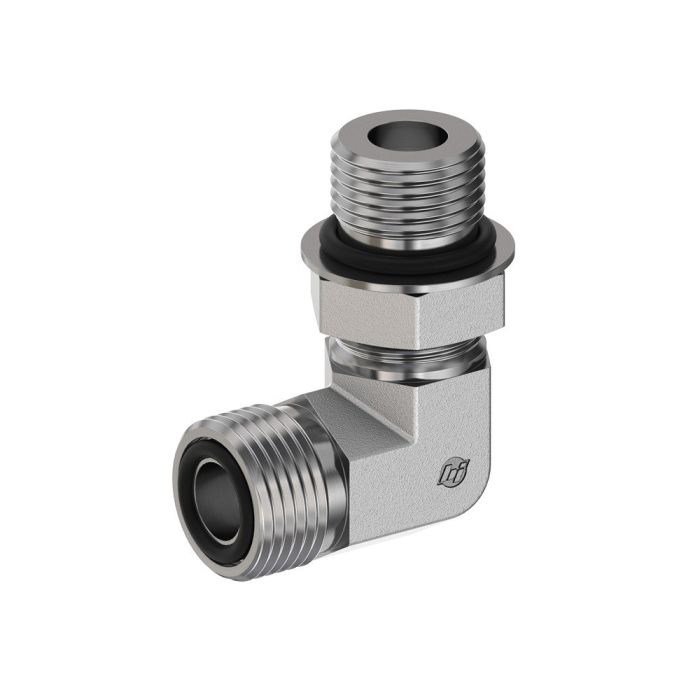

The 04MFS-04MORB 90 DEG ELBOW by Brennan Industries Inc is a forged 90-degree elbow designed for high-performance applications. It features a precision 9/16-18 A Thread and a 7/16-20 B Thread ensuring a reliable connection in various technical environments.

Constructed for robustness the elbow includes a 0.625 C Hex and 0.562 Jj Flats providing dependable torque transfer. This component is ideal for systems requiring strict tolerance adherence with its precise 0.172 A and B Drill dimensions offering seamless integration.

With a compact M Length of 0.85 and N Length of 1.29 it is highly suitable for confined spaces maintaining flow integrity even in tight installations. The tube O.D. of 1/4 ensures compatibility with industry-standard tubing making it versatile across different applications.

Belonging to the FS6801-NWO-FG series this elbow is designed to meet rigorous industry requirements providing durability and long-lasting performance.

MPN: FS6801-04-04-NWO-FG

Supplier Part Number: FS6801-04-04-NWO-FG

Specifications

Brand
BRENNAN
a Drill Dimensions
0.172 in
b Drill Dimensions
0.172 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
5/8 in
jj Flats Dimensions
0.562 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6801-NWO-FG Series
Thread Size
9/16-18, 7/16-20
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
20MFS-16MORB 90 DEG ELBOW

FF6801-20-16

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

04MFS-06MORB 90 ELBOW FORG

FS6801-04-06-NWO-FG

1/4 in

3/8 in

9/16-18

04MFS-08MORB 90 ELBOW FORG

FS6801-04-08-NWO-FG

1/4 in

1/2 in

3/4-16, 9/16-18

06MFS-04MORB 90 ELBOW FORG

FS6801-06-04-NWO-FG

3/8 in

1/4 in

11/16-16 x 7/16-20

06MFS-05MORB 90 DEG ELBOW

FS6801-06-05-NWO-FG

3/8 in

5/16 in

11/16-16 x 1/2-20

06MFS-06MORB 90 DEG ELBOW

FS6801-06-06-NWO-FG

3/8 in

3/8 in

11/16-16, 9/16-18

06MFS-08MORB 90 DEG Elbow

FS6801-06-08-NWO-FG

3/8 in

1/2 in

11/16-16 x 3/4-16

06MFS-10MAORB 90 DEG ELBOW FORGED

FS6801-06-10-NWO-FG

3/8 in

5/8 in

11/16-16, 7/8-14

08MFS-06MORB 90 ELBOW FORG

FS6801-08-06-NWO-FG

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

8MFS-8MAORB 90 ELBOW FORGED

FS6801-08-08-NWO-FG

1/2 in

1/2 in

13/16-16 x 3/4-16

08MFS-12MORB 90 ELBOW FORG

FS6801-08-12-NWO-FG

1/2 in

3/4 in

1-3/16-16 x 1-1/16-12

10MFS-08MORB 90 ELBOW FORG

FS6801-10-08-NWO-FG

5/8 in

1/2 in

1-14, 3/4-16

12MFS-08MORB 90 ELBOW FORG

FS6801-12-08-NWO-FG

3/4 in

1/2 in

1-3/16-12, 3/4-16

12MFS-10MORB 90 ELBOW FORG

FS6801-12-10-NWO-FG

3/4 in

5/8 in

1-3/16-12, 7/8-14

12MFS-16MORB 90 ELBOW

FS6801-12-16-NWO-FG

3/4 in

1 in

1-3/16-12 x 1-5/16-12

FS6801-16-12-NWO-FG

FS6801-16-12-NWO-FG

1 in

3/4 in

1-7/16-12 x 1-1/16-12

16MFS-16MORB 90 DEG ELBOW

FS6801-16-16

1 in

1 in

1-7/16-12, 1-5/16-12

16MFS-20MORB 90 ELBOW

FS6801-16-20-NWO-FG

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

16MFS-24MORB 90 ELBOW FORG

FS6801-16-24-NWO-FG

1 in

1-1/2 in

1-7/16-12 x 1-7/8-12

20MFS-20MORB 90 ELBOW

FS6801-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

24MFS-24MORB 90 DEG ELBOW

FS6801-24-24-NWO-FG

1-1/2 in

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (1)

Question by: Shawn H on Jul 27, 2025, 9:07 AM
got a tight spot on a 1/4 inch tube line, what are the thread sizes on this 90 elbow?
Answer by: Customer Support on Jul 28, 2025, 4:56 PM
It has a 9/16-18 A thread on one end and a 7/16-20 B thread on the other, and it is sized for 1/4 inch tube O.D.
