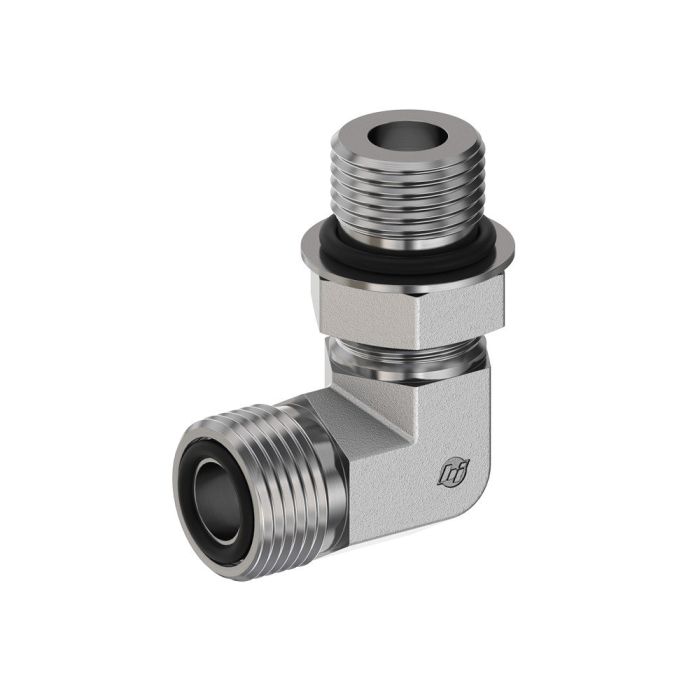

04MFS-06MORB 90 ELBOW FORG

Ask A Question

Description & Features

The 04MFS-06MORB 90 Elbow Forged designed by Brennan Industries Inc offers precise engineering for industry-specific applications. Ideal for tasks requiring a 90-degree angle this elbow component is expertly forged to ensure durability and reliability in demanding environments.

The component features a thread size of 9/16-18 on both ends and an A drill diameter of 0.172 and a B drill diameter of 0.264. Its dimensions include a C hex size of 0.750 and Jj flats of 0.750 contributing to its robust design.

This product part of the FS6801-NWO-FG series has a tube outer diameter of 1/4 making it suitable for various industrial applications. The M length is 0.92 and the N length is 1.45 highlighting its compact yet functional design.

With superior design and efficacy this elbow fitting offers significant utility in professional settings requiring precise angle-specific components.

MPN: FS6801-04-06-NWO-FG

Supplier Part Number: FS6801-04-06-NWO-FG

Specifications

Brand
BRENNAN
a Drill Dimensions
0.172 in
b Drill Dimensions
0.264 in
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
3/4 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6801-NWO-FG Series
Thread Size
9/16-18
Tube OD
1/4 in
Tube Outside Diameter
1/4 in
