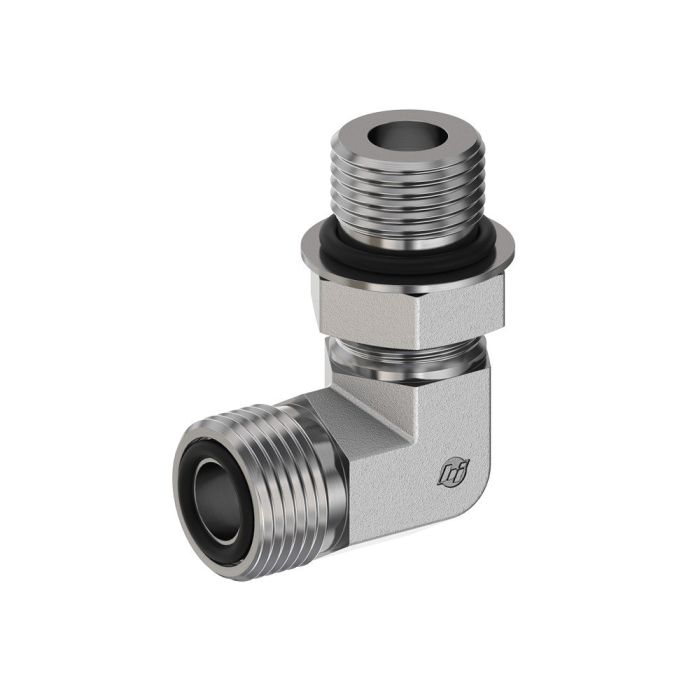

main product photo

06MFS-06MORB 90 DEG ELBOW

Ask A Question

Description & Features

A 90-degree elbow fitting designed to redirect hydraulic line flow at a right angle, the 06MFS-06MORB 90 Deg Elbow connects a 6-series male face seal (MFS) port to a 6-series male O-ring boss (ORB) port. This configuration is well suited for installations where space constraints or routing requirements call for a compact directional change between components.

Face seal and O-ring boss connections are standard in hydraulic systems where leak-free performance and reliable sealing are priorities. The male face seal end provides a metal-to-metal seating surface with an O-ring seal, while the male ORB end threads into a straight-thread boss port for a secure, pressure-rated connection.

SKU: FS6801-06-06-NWO-FG

Supplier Part Number (MPN): FS6801-06-06-NWO-FG

Alternate Part Numbers: AFF1868T0606S, FF6801-06-06, FS6801-06-06, FS6801-06-06-N

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
3/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6801-NWO-FG Series
Thread Size
11/16-16, 9/16-18

Product Questions & Answers (1)

Question by: Jimmy L on Aug 27, 2025, 10:09 AM
Is this elbow fitting good for hydraulic lines that need a tight turn?
Answer by: Customer Support on Aug 28, 2025, 5:50 PM
This 90-degree elbow is well-suited for redirecting hydraulic line flow where space is limited, allowing for a compact directional change between components.
