06MFS-08MAORB 90 DEG ELBOW STAINLESS

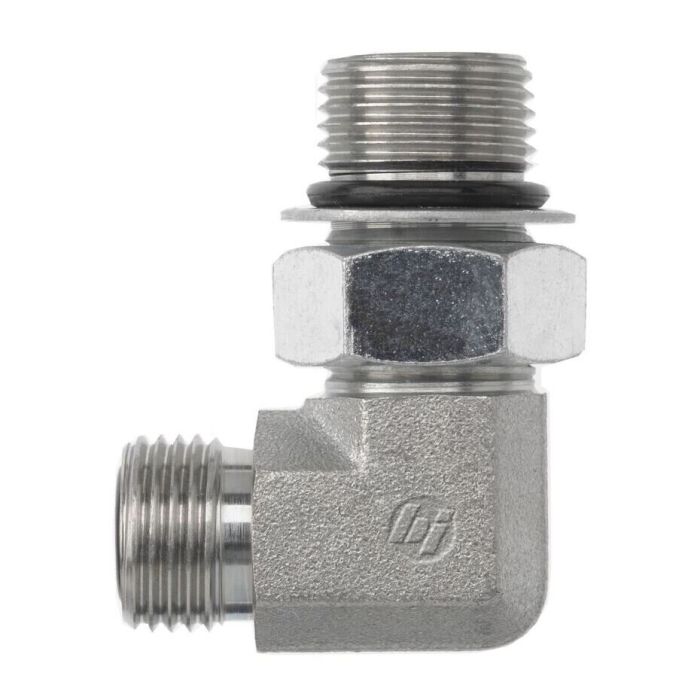

Constructed from stainless steel, this 90-degree elbow fitting connects a 3/8 in. OD male flareless (MFS) port to a male O-ring boss (MAORB) port, making it well suited for hydraulic systems where corrosion resistance and reliable sealing are required. The 06MFS-08MAORB 90 Deg Elbow Stainless is part of the Brennan Industries FS6801-NWO-FG series and is designed for use in tight-routing applications where a right-angle transition between two differently sized ports is needed.

The A-side thread measures 11/16-16 with a 0.264 in. drill, while the B-side runs 3/4-16 with a 0.378 in. drill. A hex flat dimension of 0.750 in. allows for standard wrench installation. Overall body length on the N dimension is 1.60 in., with an M length of 1.04 in. The 0.938 in. C-hex provides additional grip surface during assembly.

SKU: FS6801-06-08-NWO-SS

Supplier Part Number (MPN): FS6801-06-08-NWO-SS
