06MFS-10MAORB 90 DEG ELBOW FORGED

Description & Features

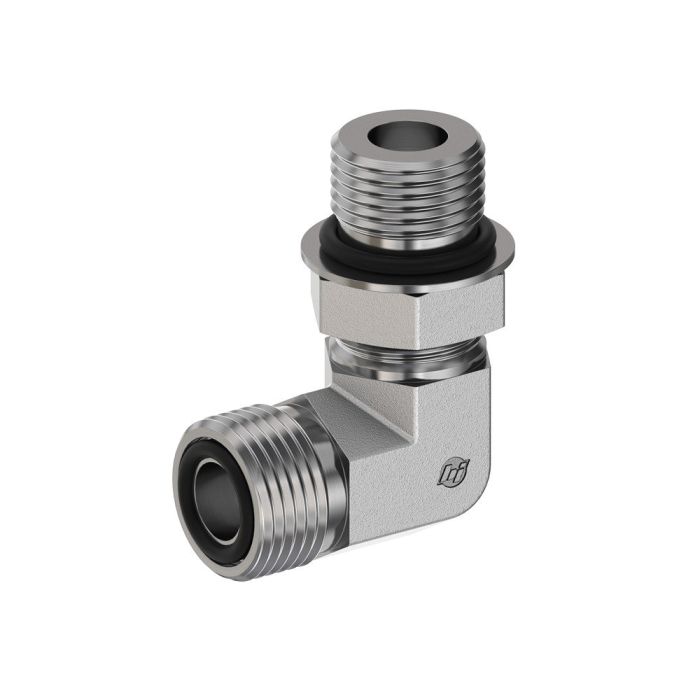

A forged 90-degree elbow designed for converting between 3/8 in. O.D. tube connections and male O-ring boss (ORB) ports, the 06MFS-10MAORB 90 Deg Elbow Forged from Brennan Industries provides a reliable directional fitting solution for hydraulic circuit routing where inline connections are not practical. The male flareless (MFS) end accepts 3/8 in. O.D. tubing with an 11/16-16 thread, while the male ORB end uses a 7/8-14 thread, making it suitable for connecting tubing runs to manifolds, valves, or other ORB-ported components.

Forged construction contributes to the fitting's strength and dimensional consistency. With a hex flat measurement of 1.062 in. and overall assembled dimensions of 1.150 in. and 1.970 in. along the M and N lengths respectively, this elbow fits standard installation envelopes. The NWO-FG series designation indicates a no-wrench-on configuration with a flat gasket seal on the ORB end, supporting leak-free metal-to-metal seating at the port face.

SKU: FS6801-06-10-NWO-FG

Supplier Part Number (MPN): FS6801-06-10-NWO-FG

Alternate Part Numbers: AFF1868T0610S, FF6801-06-10, FS6801-06-10-NWO

Specifications

Brand
BRENNAN
a Drill Dimensions
0.264 in
b Drill Dimensions
0.484 in
Connection Size 1
3/8 in
Connection Size 2
5/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
jj Flats Dimensions
1.062 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6801-NWO-FG Series
Thread Size
11/16-16, 7/8-14
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
20MFS-16MORB 90 DEG ELBOW

FF6801-20-16

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

04MFS-04MORB 90 DEG ELBOW

FS6801-04-04-NWO-FG

1/4 in

1/4 in

9/16-18, 7/16-20

04MFS-06MORB 90 ELBOW FORG

FS6801-04-06-NWO-FG

1/4 in

3/8 in

9/16-18

04MFS-08MORB 90 ELBOW FORG

FS6801-04-08-NWO-FG

1/4 in

1/2 in

3/4-16, 9/16-18

06MFS-04MORB 90 ELBOW FORG

FS6801-06-04-NWO-FG

3/8 in

1/4 in

11/16-16 x 7/16-20

06MFS-05MORB 90 DEG ELBOW

FS6801-06-05-NWO-FG

3/8 in

5/16 in

11/16-16 x 1/2-20

06MFS-06MORB 90 DEG ELBOW

FS6801-06-06-NWO-FG

3/8 in

3/8 in

11/16-16, 9/16-18

06MFS-08MORB 90 DEG Elbow

FS6801-06-08-NWO-FG

3/8 in

1/2 in

11/16-16 x 3/4-16

08MFS-06MORB 90 ELBOW FORG

FS6801-08-06-NWO-FG

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

8MFS-8MAORB 90 ELBOW FORGED

FS6801-08-08-NWO-FG

1/2 in

1/2 in

13/16-16 x 3/4-16

08MFS-12MORB 90 ELBOW FORG

FS6801-08-12-NWO-FG

1/2 in

3/4 in

1-3/16-16 x 1-1/16-12

10MFS-08MORB 90 ELBOW FORG

FS6801-10-08-NWO-FG

5/8 in

1/2 in

1-14, 3/4-16

12MFS-08MORB 90 ELBOW FORG

FS6801-12-08-NWO-FG

3/4 in

1/2 in

1-3/16-12, 3/4-16

12MFS-10MORB 90 ELBOW FORG

FS6801-12-10-NWO-FG

3/4 in

5/8 in

1-3/16-12, 7/8-14

12MFS-16MORB 90 ELBOW

FS6801-12-16-NWO-FG

3/4 in

1 in

1-3/16-12 x 1-5/16-12

FS6801-16-12-NWO-FG

FS6801-16-12-NWO-FG

1 in

3/4 in

1-7/16-12 x 1-1/16-12

16MFS-16MORB 90 DEG ELBOW

FS6801-16-16

1 in

1 in

1-7/16-12, 1-5/16-12

16MFS-20MORB 90 ELBOW

FS6801-16-20-NWO-FG

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

16MFS-24MORB 90 ELBOW FORG

FS6801-16-24-NWO-FG

1 in

1-1/2 in

1-7/16-12 x 1-7/8-12

20MFS-20MORB 90 ELBOW

FS6801-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

24MFS-24MORB 90 DEG ELBOW

FS6801-24-24-NWO-FG

1-1/2 in

1-1/2 in

2-12 x 1-7/8-12
