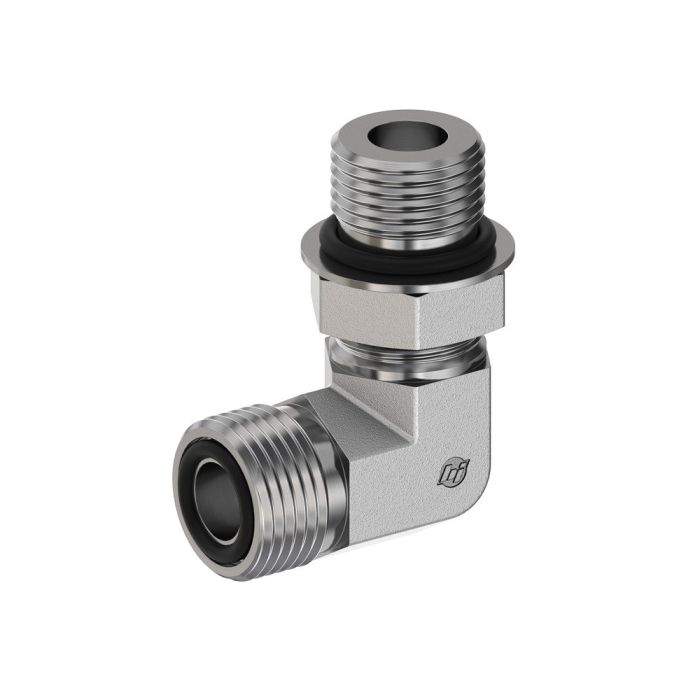

08MFS-06MORB 90 ELBOW FORG

Ask A Question

Description & Features

The 08MFS-06MORB 90 Elbow Forged features a 90-degree angle for versatile connection options. It has a Brennan A drill size of 0.378 with a 13/16-16 thread and a Brennan B drill size of 0.264 with a 9/16-18 thread.

This forged elbow has a Brennan C hex size of 0.750 and Brennan Jj flats of 0.750. The Brennan M Lgth is 1.10 and the Brennan N Lgth is 1.44. It is part of the Brennan Series FS6801-NWO-FG and accommodates a tube OD of 1/2.

SKU: FS6801-08-06-NWO-FG

Supplier Part Number (MPN): FS6801-08-06-NWO-FG

Alternate Part Numbers: AFF1868T0806S, FF6801-08-06, FS6801-08-06-NWO

Specifications

Brand
BRENNAN
a Drill Dimensions
0.378 in
b Drill Dimensions
0.264 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
3/4 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6801-NWO-FG Series
Thread Size
13/16-16 x 9/16-18 x 13/16-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (1)

Question by: Brent B on Sep 1, 2025, 2:17 PM
What size tubing does this elbow fit? Seems like I'm always grabbing the wrong size.
Answer by: Customer Support on Sep 2, 2025, 8:44 PM
This elbow is made to work with 1/2" OD (outer diameter) tubing.
