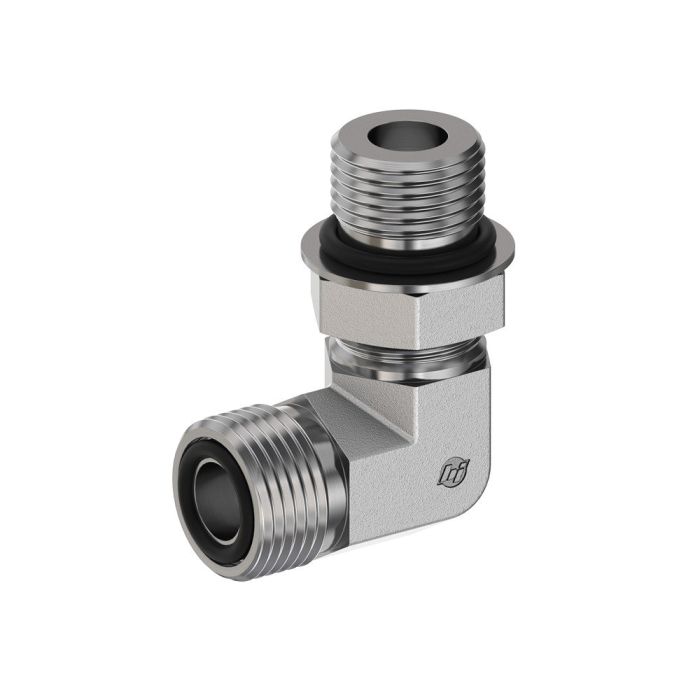

08MFS-12MORB 90 ELBOW FORG

Description & Features

This forged 90-degree elbow features a 1/2 inch tube OD and is constructed from durable materials for reliable performance in demanding hydraulic applications. With a Brennan A drill size of 0.378 and A thread size of 13/16-16, this elbow ensures a secure and leak-free connection. The Brennan B drill size measures 0.609, with a corresponding B thread size of 1-1/16-12. The 08MFS-12MORB 90 ELBOW FORG also features a C hex size of 1.375 and Jj flats measuring 1.188.

The elbow’s design includes an M length of 1.320 and an N length of 2.170, conforming to the FS6801-NWO-FG series standards. It is suitable for various male connection applications, ensuring compatibility and efficient integration into hydraulic systems.

SKU: FS6801-08-12-NWO-FG

Supplier Part Number (MPN): FS6801-08-12-NWO-FG

Alternate Part Numbers: AFF1868T0812S, FF6801-08-12, FS6801-08-12, FS6801-08-12-NWO

Specifications

Brand
BRENNAN
a Drill Dimensions
0.378 in
b Drill Dimensions
0.609 in
Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-3/8 in
igs Only
Without Igs
jj Flats Dimensions
1.188 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6801-NWO-FG Series
Thread Size
1-3/16-16 x 1-1/16-12
Tube OD
1/2 in
Tube Outside Diameter
1/2 in
