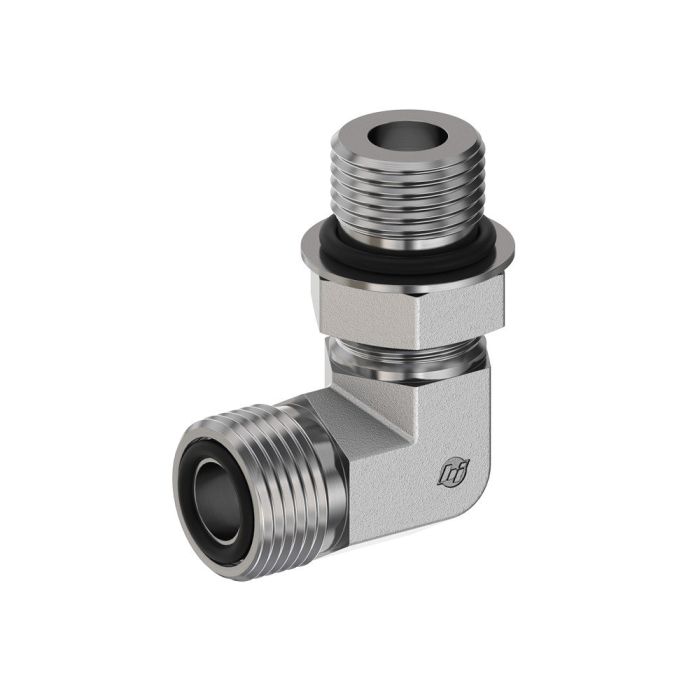

10MFS-08MORB 90 ELBOW FORG

Description & Features

This 90-degree elbow fitting is crafted with precision to meet the demanding needs of hydraulic systems. Designed by Brennan Industries, the fitting offers robust performance with its forged construction, ensuring durability and reliability in high-pressure environments. The fitting accommodates a male connection type, featuring an A-thread of 1-14 and a B-thread of 3/4-16, making it versatile for various industrial applications.

The 10MFS-08MORB 90 ELBOW FORG is designed for seamless integration into existing systems, with a tube outer diameter of 5/8 inches. Its compact design, with a Brennan C Hex measurement of 0.938 inches and Jj Flats of 1.062 inches, provides secure connections while minimizing space requirements. This fitting is part of the FS6801-NWO-FG series, ensuring compatibility across similar Brennan parts.

SKU: FS6801-10-08-NWO-FG

Supplier Part Number (MPN): FS6801-10-08-NWO-FG

Alternate Part Numbers: AFF1868T1008S, FF6801-10-08, FS6801-10-08

Specifications

Brand
BRENNAN
a Drill Dimensions
0.484 in
b Drill Dimensions
0.378 in
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.94 in
jj Flats Dimensions
1.062 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6801-NWO-FG Series
Thread Size
1-14, 3/4-16
Tube Outside Diameter
5/8 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
20MFS-16MORB 90 DEG ELBOW

FF6801-20-16

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

04MFS-04MORB 90 DEG ELBOW

FS6801-04-04-NWO-FG

1/4 in

1/4 in

9/16-18, 7/16-20

04MFS-06MORB 90 ELBOW FORG

FS6801-04-06-NWO-FG

1/4 in

3/8 in

9/16-18

04MFS-08MORB 90 ELBOW FORG

FS6801-04-08-NWO-FG

1/4 in

1/2 in

3/4-16, 9/16-18

06MFS-04MORB 90 ELBOW FORG

FS6801-06-04-NWO-FG

3/8 in

1/4 in

11/16-16 x 7/16-20

06MFS-05MORB 90 DEG ELBOW

FS6801-06-05-NWO-FG

3/8 in

5/16 in

11/16-16 x 1/2-20

06MFS-06MORB 90 DEG ELBOW

FS6801-06-06-NWO-FG

3/8 in

3/8 in

11/16-16, 9/16-18

06MFS-08MORB 90 DEG Elbow

FS6801-06-08-NWO-FG

3/8 in

1/2 in

11/16-16 x 3/4-16

06MFS-10MAORB 90 DEG ELBOW FORGED

FS6801-06-10-NWO-FG

3/8 in

5/8 in

11/16-16, 7/8-14

08MFS-06MORB 90 ELBOW FORG

FS6801-08-06-NWO-FG

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

8MFS-8MAORB 90 ELBOW FORGED

FS6801-08-08-NWO-FG

1/2 in

1/2 in

13/16-16 x 3/4-16

08MFS-12MORB 90 ELBOW FORG

FS6801-08-12-NWO-FG

1/2 in

3/4 in

1-3/16-16 x 1-1/16-12

12MFS-08MORB 90 ELBOW FORG

FS6801-12-08-NWO-FG

3/4 in

1/2 in

1-3/16-12, 3/4-16

12MFS-10MORB 90 ELBOW FORG

FS6801-12-10-NWO-FG

3/4 in

5/8 in

1-3/16-12, 7/8-14

12MFS-16MORB 90 ELBOW

FS6801-12-16-NWO-FG

3/4 in

1 in

1-3/16-12 x 1-5/16-12

FS6801-16-12-NWO-FG

FS6801-16-12-NWO-FG

1 in

3/4 in

1-7/16-12 x 1-1/16-12

16MFS-16MORB 90 DEG ELBOW

FS6801-16-16

1 in

1 in

1-7/16-12, 1-5/16-12

16MFS-20MORB 90 ELBOW

FS6801-16-20-NWO-FG

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

16MFS-24MORB 90 ELBOW FORG

FS6801-16-24-NWO-FG

1 in

1-1/2 in

1-7/16-12 x 1-7/8-12

20MFS-20MORB 90 ELBOW

FS6801-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

24MFS-24MORB 90 DEG ELBOW

FS6801-24-24-NWO-FG

1-1/2 in

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (1)

Question by: Dean B on Dec 12, 2025, 10:40 AM
What size tubing does this elbow fitting work with?
Answer by: Customer Support on Dec 14, 2025, 6:24 AM
It's designed for use with 5/8 inch outer diameter tubing, ensuring a snug and reliable connection in your hydraulic setup.
