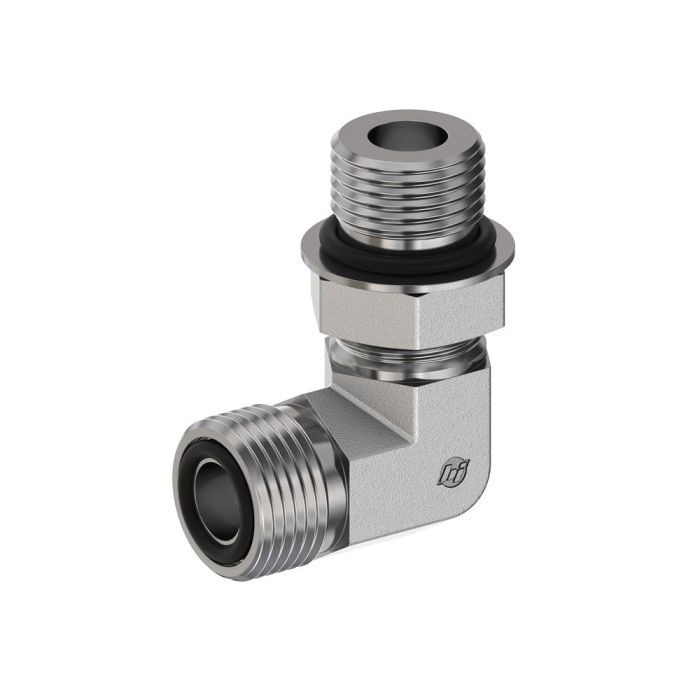

main product photo

10MFS-12MORB 90 DEG ELBOW

Ask A Question

Description & Features

The 10MFS-12MORB 90 Degree Elbow, also known as a 90-degree elbow fitting, is manufactured by Brennan Industries.

This elbow fitting has a Supplier Part Number of FS6801-10-12-NWO-FG.

SKU: FS6801-10-12-NWO

Supplier Part Number (MPN): FS6801-10-12-NWO-FG

Alternate Part Numbers: AFF1868T1012S, FF6801-10-12

Specifications

Connection Size 1
5/8 in
Connection Size 2
3/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-3/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6801-NWO-FG Series
Thread Size
1-14 x 1-1/16-12

Product Questions & Answers (3)

Question by: Judy S on Aug 10, 2025, 4:34 PM
what all part numbers cross over to this fitting? got a busted one on a skid steer and tryin to figure out if i can source it local under a different number
Answer by: Customer Support on Aug 11, 2025, 5:14 PM
A few alternate numbers float around for this one. Besides the main SKU FS6801-10-12-NWO, you can also look it up as AFF1868T1012S, FF6801-10-12, or FS6801-10-12-NWO-FG. Any supplier carrying Brennan Industries fittings should be able to pull it up under one of those.
Question by: Sherry W on Apr 29, 2025, 8:16 PM
got a tight spot on a hose run, what is this 10MFS-12MORB 90 deg elbow actually meant to do
Answer by: Customer Support on May 1, 2025, 6:19 AM
A 90 degree elbow fitting is used to make a right angle turn in a hydraulic line, which helps route a hose or tube around an obstruction without having to bend the line sharply.
Question by: Tony K on May 30, 2025, 5:03 PM
Just want to make sure, this here's a ninety degree elbow, right?
Answer by: Customer Support on Jun 1, 2025, 6:43 AM
That's correct. It's a 90-degree elbow fitting.
