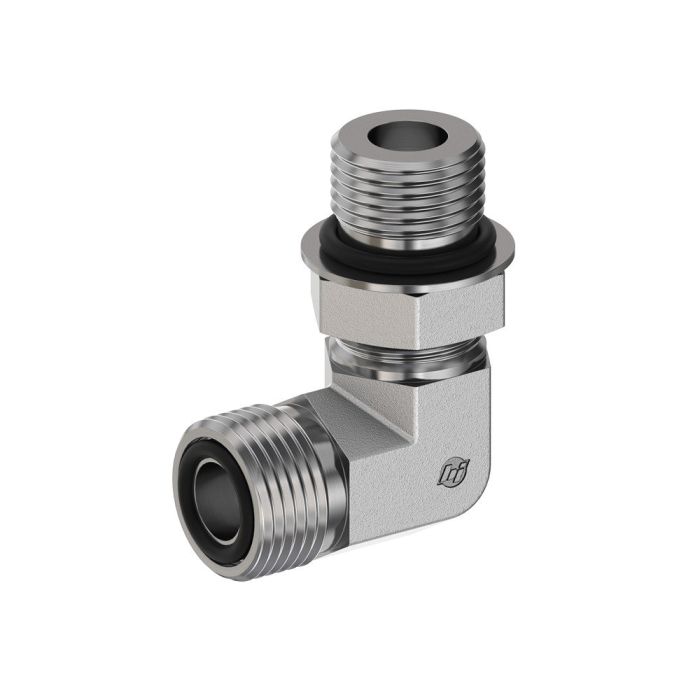

12MFS-10MORB 90 ELBOW FORG

Description & Features

This forged 90-degree elbow features a 1-3/16-12 A thread and a 7/8-14 B thread, with corresponding A drill size of 0.609 and B drill size of 0.484. The 12MFS-10MORB 90 ELBOW FORG has a C hex size of 1.062 and Jj flats of 1.188. M length measures 1.47, and N length is 2.01.

Part of the FS6801-NWO-FG series, this elbow fitting is designed for a 3/4 inch tube OD.

SKU: FS6801-12-10-NWO-FG

Supplier Part Number (MPN): FS6801-12-10-NWO-FG

Alternate Part Numbers: AFF1868T1210S, FF6801-12-10

Specifications

Brand
BRENNAN
a Drill Dimensions
0.609 in
b Drill Dimensions
0.484 in
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
jj Flats Dimensions
1.188 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6801-NWO-FG Series
Thread Size
1-3/16-12, 7/8-14
Tube Outside Diameter
3/4 in
