12MFS-16MORB 90 ELBOW

Description & Features

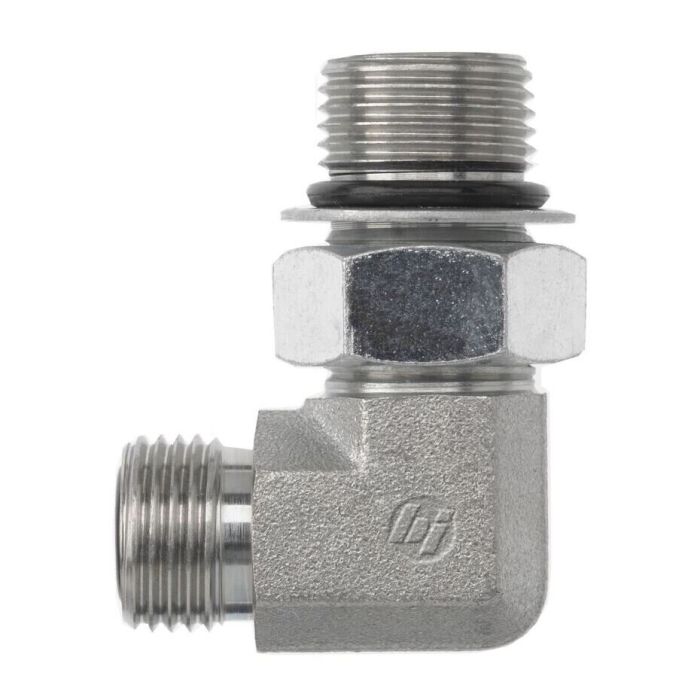

The 12MFS-16MORB 90 Elbow from Brennan Industries Inc is a robust and reliable adapter designed for industrial applications. This forged elbow is engineered to provide efficient fluid connection solutions.

With precision craftsmanship the product ensures optimal performance and longevity. Key specifications include a drill dimension of 0.609 inches and a B drill dimension of 0.811 inches making it suitable for demanding environments.

Built with a thread size of 1-3/16-12 on side A and 1-5/16-12 on side B this adapter offers secure and leak-proof connections. The C Hex size of 1.625 inches and JJ flats of 1.438 inches further contribute to its durability.

The product's series FS6801-NWO-FG signifies its adherence to industry standards ensuring compatibility and reliability. The tube outer diameter of 3/4 inches makes it a versatile choice for various industrial systems.

With an overall length of 1.62 inches and N length of 2.35 inches this 90-degree elbow adapter is optimized for space-saving installations while maintaining excellent functionality.

MPN: FS6801-12-16-NWO-FG

Supplier Part Number: FS6801-12-16-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS6801-12-16-NWO-FG	Product Weight 1.00 lbs

Product Questions & Answers (3)

Question by: Roger C on Sep 13, 2025, 7:26 PM

Is this elbow fitting something I could use for a hydraulic setup on a piece of machinery, or is it more for something else?

Answer by: Customer Support on Sep 14, 2025, 8:41 PM

This 90-degree elbow adapter is a versatile choice, particularly well-suited for hydraulic systems that require connections in tight spaces, thanks to its optimized length of 1.62 inches.

Question by: Curt G on Oct 20, 2025, 8:16 PM

got a tight spot on a skid. how long is this 90 elbow end to end?

Answer by: Customer Support on Oct 22, 2025, 7:33 PM

Overall length on this forged 90 degree elbow is 1.62 inches, and the N length is 2.35 inches.

Question by: Denise P on Nov 16, 2025, 9:24 AM

Got a 3/4 inch tube line running into a tight corner on a hydraulic manifold. This the right elbow to make that turn without a bunch of extra fittings?

Answer by: Customer Support on Nov 17, 2025, 6:26 PM

For a 3/4 inch OD tube line, yeah, this one lines up right. The elbow carries a 3/4 inch tube OD rating and makes a clean 90 degree turn in a pretty compact footprint. Overall length runs 1.62 inches on the M dimension and 2.35 inches on the N length, so it tucks in reasonably well where space is at a premium. Side A uses a 1-3/16-12 thread and side B steps up to a 1-5/16-12, so just make sure both ports on your manifold match those thread specs before you order.
