16MFS-20MORB 90 ELBOW

Description & Features

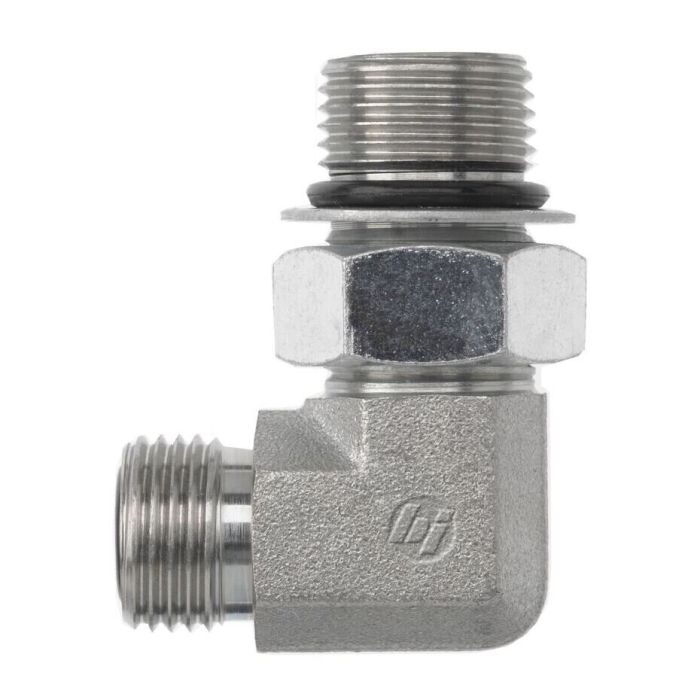

The 16MFS-20MORB 90 Elbow forged adapter is an essential component for industrial applications requiring precise and reliable connections. Manufactured by Brennan Industries Inc this elbow is designed for optimal performance and durability.

Key dimensions include a 0.811 diameter for 'A' drill a 1.024 diameter for 'B' drill and a 1.875 hex size for 'C'. The adapter also features a 1-7/16-12 thread for 'A' and a 1-5/8-12 thread for 'B' to ensure compatibility with various system specifications. The 90-degree design allows for flexible installation in complex setups and the 1 inch tube O.D. makes it suited for high-demand environments.

Part of the FS6801-NWO-FG series this elbow adapter is built to withstand rigorous use making it a reliable choice for your industrial needs. The precise length dimensions of 1.760 for 'M' and 2.450 for 'N' further contribute to its excellent fit and function in diverse settings. Elevate your systems efficiency and reliability with this expertly crafted product.

Supplier Part Number: FS6801-16-20-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS6801-16-20-NWO-FG	Product Weight 1.00 lbs

Product Questions & Answers (3)

Question by: Duane C on Jan 16, 2026, 3:10 PM

Got a 1-inch tube line coming off a pump and need to step up to a 1-5/8-12 ORB port on the manifold, does this fitting make that turn?

Answer by: Customer Support on Jan 17, 2026, 8:34 PM

That's exactly the application this elbow handles. The A side threads at 1-7/16-12 to mate with your 1-inch tube O.D. connection, and the B side is a 1-5/8-12 thread for the ORB port on your manifold. The 90-degree forged body gets you the direction change in one fitting instead of piecing together a straight adapter and a separate elbow.

Question by: Cheryl H on Mar 21, 2026, 8:27 AM

trying to swap out an elbow on a 1 inch tube line. is this one actually for 1 inch tube O.D.?

Answer by: Customer Support on Mar 22, 2026, 10:15 AM

For tube sizing, it matches a 1 inch tube O.D. and it is a 90 degree forged adapter elbow in Brennan’s FS6801-NWO-FG series.

Question by: Harold P on May 2, 2025, 4:32 PM

What size is that hex head on this elbow?

Answer by: Customer Support on May 4, 2025, 2:59 PM

The hex size (dimension 'C') on this elbow is 1.875 inches.
