16MFS-24MORB 90 ELBOW FORG

Description & Features

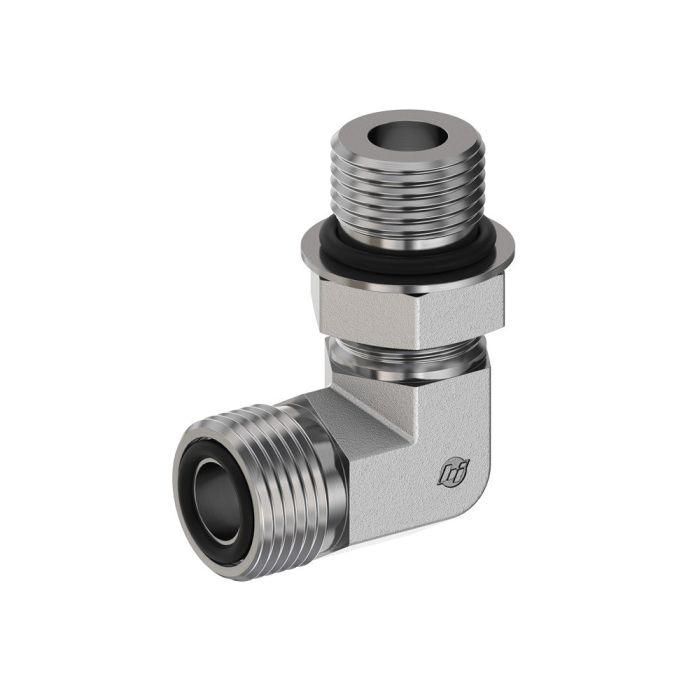

A forged 90-degree elbow designed for high-pressure hydraulic lines, the 16MFS-24MORB 90 Elbow Forg by Brennan Industries connects a 1-inch OD tube end (1-7/16-12 thread) to a 24 MORB port (1-7/8-12 thread), making it well suited for routing hydraulic lines where a right-angle transition between tube and O-ring boss fittings is required.

Forged construction provides the structural integrity expected in demanding hydraulic applications. The fitting measures 1.920 inches along the M length and 2.590 inches along the N length, with a 2.125-inch C hex and 1.875-inch JJ flats for reliable wrench engagement during installation. Part of the Brennan FS6801-NWO-FG series, this male-configuration elbow is a dependable choice for industrial hydraulic assemblies requiring a compact directional change.

SKU: FS6801-16-24-NWO-FG

Supplier Part Number (MPN): FS6801-16-24-NWO-FG

Specifications

Brand
BRENNAN
a Drill Dimensions
0.811 in
b Drill Dimensions
1.26 in
Connection Size 1
1 in
Connection Size 2
1-1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
2-1/8 in
jj Flats Dimensions
1-7/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6801-NWO-FG Series
Thread Size
1-7/16-12 x 1-7/8-12
Tube Outside Diameter
1 in
