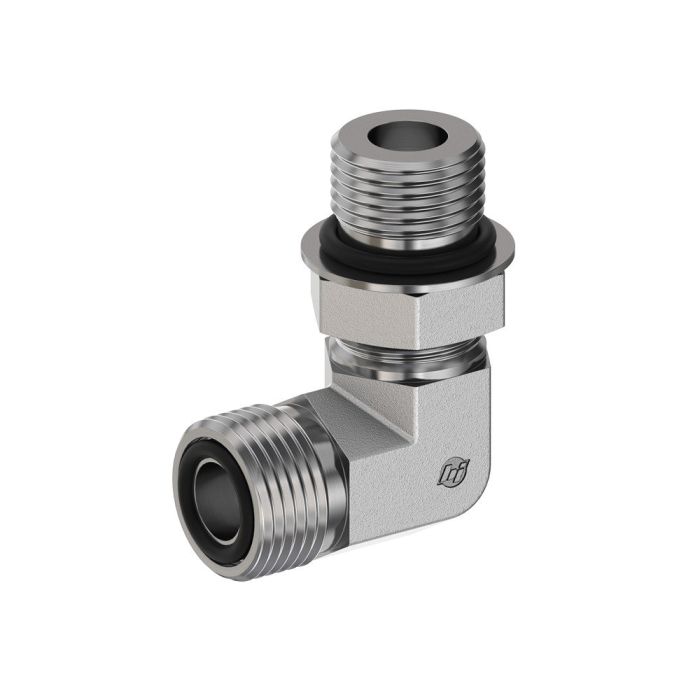

24MFS-24MORB 90 DEG ELBOW

Description & Features

This forged 90-degree elbow, part number 24MFS-24MORB, features a 1-1/2 inch tube OD.

The FS6801-NWO-FG series elbow has a Brennan A Drill size of 1.260 and a Brennan A Thread of 2-12. It also features a Brennan B Drill size of 1.260 and a Brennan B Thread of 1-7/8-12. The Brennan C Hex measures 2.125, with Brennan Jj Flats at 1.875. The Brennan M Length is 1.920, and the Brennan N Length is 2.590.

SKU: FS6801-24-24-NWO-FG

Supplier Part Number (MPN): FS6801-24-24-NWO-FG

Alternate Part Numbers: AFF1868T2424S, FF6801-24-24

Specifications

Brand
BRENNAN
a Drill Dimensions
1.26 in
b Drill Dimensions
1.26 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
2-1/8 in
jj Flats Dimensions
1-7/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6801-NWO-FG Series
Thread Size
2-12 x 1-7/8-12
Tube Outside Diameter
1-1/2 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
20MFS-16MORB 90 DEG ELBOW

FF6801-20-16

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

04MFS-04MORB 90 DEG ELBOW

FS6801-04-04-NWO-FG

1/4 in

1/4 in

9/16-18, 7/16-20

04MFS-06MORB 90 ELBOW FORG

FS6801-04-06-NWO-FG

1/4 in

3/8 in

9/16-18

04MFS-08MORB 90 ELBOW FORG

FS6801-04-08-NWO-FG

1/4 in

1/2 in

3/4-16, 9/16-18

06MFS-04MORB 90 ELBOW FORG

FS6801-06-04-NWO-FG

3/8 in

1/4 in

11/16-16 x 7/16-20

06MFS-05MORB 90 DEG ELBOW

FS6801-06-05-NWO-FG

3/8 in

5/16 in

11/16-16 x 1/2-20

06MFS-06MORB 90 DEG ELBOW

FS6801-06-06-NWO-FG

3/8 in

3/8 in

11/16-16, 9/16-18

06MFS-08MORB 90 DEG Elbow

FS6801-06-08-NWO-FG

3/8 in

1/2 in

11/16-16 x 3/4-16

06MFS-10MAORB 90 DEG ELBOW FORGED

FS6801-06-10-NWO-FG

3/8 in

5/8 in

11/16-16, 7/8-14

08MFS-06MORB 90 ELBOW FORG

FS6801-08-06-NWO-FG

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

8MFS-8MAORB 90 ELBOW FORGED

FS6801-08-08-NWO-FG

1/2 in

1/2 in

13/16-16 x 3/4-16

08MFS-12MORB 90 ELBOW FORG

FS6801-08-12-NWO-FG

1/2 in

3/4 in

1-3/16-16 x 1-1/16-12

10MFS-08MORB 90 ELBOW FORG

FS6801-10-08-NWO-FG

5/8 in

1/2 in

1-14, 3/4-16

12MFS-08MORB 90 ELBOW FORG

FS6801-12-08-NWO-FG

3/4 in

1/2 in

1-3/16-12, 3/4-16

12MFS-10MORB 90 ELBOW FORG

FS6801-12-10-NWO-FG

3/4 in

5/8 in

1-3/16-12, 7/8-14

12MFS-16MORB 90 ELBOW

FS6801-12-16-NWO-FG

3/4 in

1 in

1-3/16-12 x 1-5/16-12

FS6801-16-12-NWO-FG

FS6801-16-12-NWO-FG

1 in

3/4 in

1-7/16-12 x 1-1/16-12

16MFS-16MORB 90 DEG ELBOW

FS6801-16-16

1 in

1 in

1-7/16-12, 1-5/16-12

16MFS-20MORB 90 ELBOW

FS6801-16-20-NWO-FG

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

16MFS-24MORB 90 ELBOW FORG

FS6801-16-24-NWO-FG

1 in

1-1/2 in

1-7/16-12 x 1-7/8-12

20MFS-20MORB 90 ELBOW

FS6801-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

Product Questions & Answers (1)

Question by: Marvin T on Dec 8, 2025, 6:45 AM
What size is the tube that this elbow fits?
Answer by: Customer Support on Dec 9, 2025, 8:23 AM
It's made for a 1-1/2 inch outer diameter tube.
