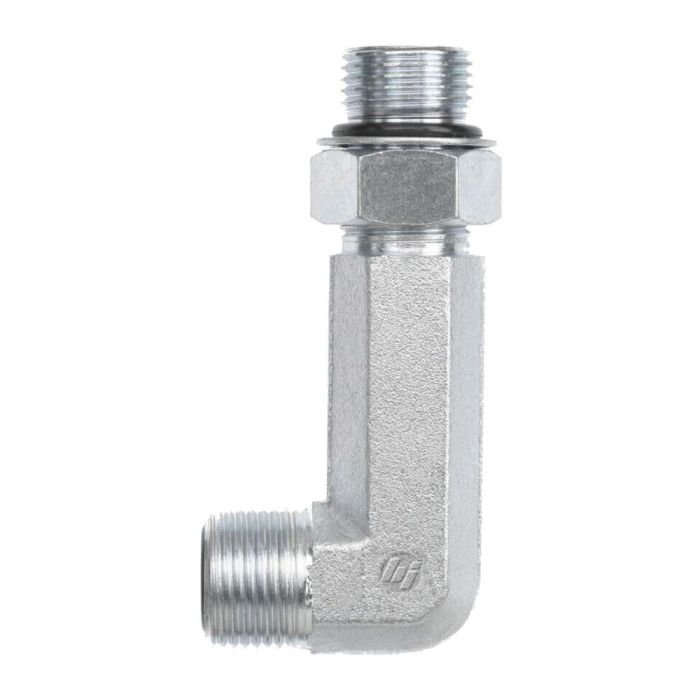

16MFS-16MAORB 90 DEG ELBOW LONG FORG

Designed for high-pressure hydraulic connections requiring a directional change, this long-pattern 90-degree elbow from Brennan Industries is forged construction and configured with a 1-inch tube OD. The A-side carries a 1-7/16-12 male face seal thread, while the B-side features a 1-5/16-12 male O-ring boss thread, making it suited for mixed-connection assemblies where MFS and MAORB end types need to interface in a single fitting.

The 16MFS-16MAORB 90 DEG Elbow Long Forged has an overall length of 4.51 inches on the N dimension and 1.64 inches on the M dimension, with a 1.625-inch C hex and 1.438-inch JJ flats for wrenching. Both ports share a 0.811-inch drill diameter. The long-pattern body provides additional clearance compared to standard-length elbows, which is useful in tight routing applications where fitting positioning is critical.

SKU: FS6801-L-16-16-NWO-FG

Supplier Part Number (MPN): FS6801-L-16-16-NWO-FG
