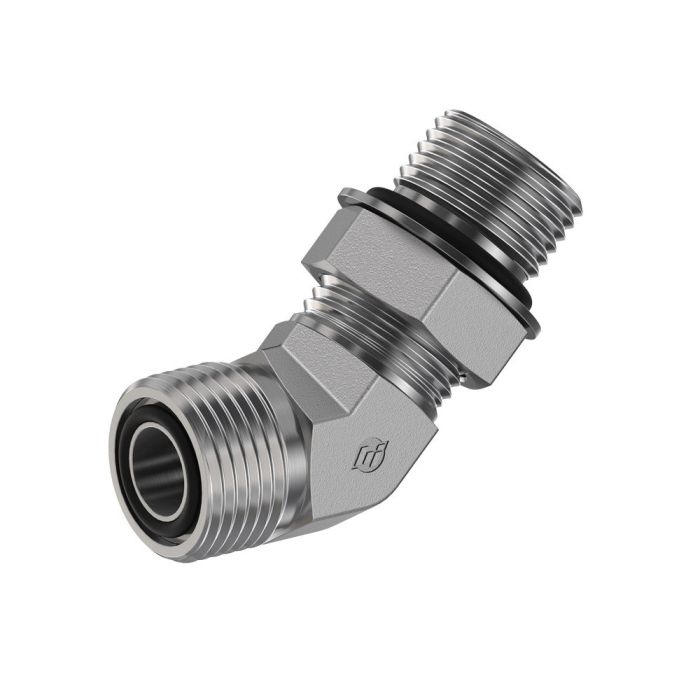

main product photo

04MFS-06MAORB 45 ELB FORG

Ask A Question

Description & Features

This forged 45-degree elbow features a 1/4 inch tube OD and is designated as 04MFS-06MAORB 45 ELB FORG.

The FS6802-NWO-FG series elbow has a Brennan A drill size of 0.172 with a 9/16-18 thread, and a Brennan B drill size of 0.264 with a 9/16-18 thread. It also features a 0.750 inch Brennan C hex and a 0.750 inch Brennan Jj flat.

SKU: FS6802-04-06-NWO-FG

Supplier Part Number (MPN): FS6802-04-06-NWO-FG

Alternate Part Numbers: AFF2068T0406S, C1ED75, FF2068T-0406, FF6802-04-06, FS6802-04-06-NWO, MI-00265032, MINO-00028F00461

Specifications

Brand
BRENNAN
a Drill Dimensions
0.172 in
b Drill Dimensions
0.264 in
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
3/4 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6802-NWO-FG Series
Thread Size
9/16-18
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Product Questions & Answers (1)

Question by: Ricky B on Jun 10, 2025, 6:31 PM
Is that thread size the same on both ends of this elbow?
Answer by: Customer Support on Jun 12, 2025, 6:59 AM
The Brennan A and Brennan B threads are both 9/16-18 on this forged elbow. The drill sizes differ slightly, at 0.172 for Brennan A and 0.264 for Brennan B.
