06MFS-04MAORB 45 ELB FORG

Description & Features

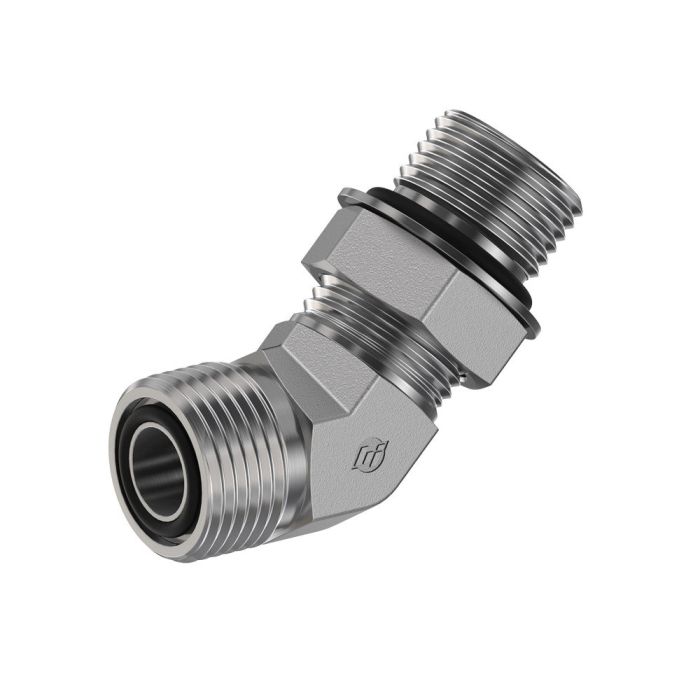

This forged 45-degree elbow features a 3/8 inch tube OD and conforms to Brennan series FS6802-NWO-FG standards. The 06MFS-04MAORB 45 ELB FORG is constructed with precision and durability in mind.

This elbow fitting has an A drill size of 0.264 inches with an 11/16-16 A thread, and a B drill size of 0.172 inches with a 7/16-20 B thread. It also features a C hex size of 0.625 inches and Jj flats of 0.750 inches. The M length measures 0.740 inches, and the N length is 1.220 inches.

SKU: FS6802-06-04-NWO-FG

Supplier Part Number (MPN): FS6802-06-04-NWO-FG

Alternate Part Numbers: AFF2068T0604S, C1EU71, FF6802-06-04, FS6802-06-04-NWO

Specifications

Brand
BRENNAN
a Drill Dimensions
0.264 in
b Drill Dimensions
0.172 in
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
5/8 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6802-NWO-FG Series
Thread Size
11/16-16 x 7/16-20
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
10MFS-12MAORB 45 DEG ELBOW

FF6802-10-12

5/8 in

3/4 in

1-14 x 1-1/16-12

20MFS-20MAORB 45 DEG ELBOW

FF6802-20-20

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

24MFS-24MAORB 45 DEG ELBOW

FF6802-24-24

1-1/2 in

1-1/2 in

2-12 x 1-7/8-12

04MFS-06MAORB 45 ELB FORG

FS6802-04-06-NWO-FG

1/4 in

3/8 in

9/16-18

06MFS-06MAORB 45 DEG ELBOW

FS6802-06-06-NWO-FG

3/8 in

3/8 in

11/16-16, 9/16-18

06MFS-08MAORB 45 ELB

FS6802-06-08-NWO-FG

3/8 in

1/2 in

11/16-16 x 3/4-16

08MFS-06MAORB 45 ELB FORG

FS6802-08-06-NWO-FG

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

08MFS-08MAORB 45 DEG ELBOW

FS6802-08-08-NWO-FG

1/2 in

1/2 in

13/16-16 x 3/4-16

08MFS-10MAORB 45 DEG ELBOW

FS6802-08-10-NWO-FG

1/2 in

5/8 in

13/16-16 x 7/8-14

10MFS-10MAORB 45 ELB FORG

FS6802-10-10-NWO-FG

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

12MFS-10MAORB 45 ELB FORG

FS6802-12-10-NWO-FG

3/4 in

5/8 in

1-3/16-12, 7/8-14

12MFS-12MAORB 45 DEG ELBOW

FS6802-12-12-NWO-FG

3/4 in

3/4 in

1-3/16-16 x 1-1/16-12

12MFS-16MAORB 45 DEG ELBOW

FS6802-12-16-NWO

3/4 in

1 in

1-3/16-12 x 1-5/16-12

16MFS-12MAORB 45 ELB FORG

FS6802-16-12-NWO-FG

1 in

3/4 in

1-7/16-12 x 1-1/16-12

16MFS-16MAORB 45 ELB

FS6802-16-16-NWO-FG

1 in

1 in

1-7/16-12, 1-5/16-12

16MFS-20MAORB 45 ELB FORG

FS6802-16-20-NWO-FG

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

Product Questions & Answers (1)

Question by: Chad M on Feb 11, 2026, 9:17 AM
Does this fitting need any special kind of wrench to tighten it down, or will a regular one work?
Answer by: Customer Support on Feb 13, 2026, 7:22 AM
For tightening, a standard wrench should work just fine on this fitting. The C hex size is 0.625 inches, and the Jj flats measure 0.750 inches, so make sure your wrench fits those dimensions.
