06MFS-08MAORB 45 ELB

Description & Features

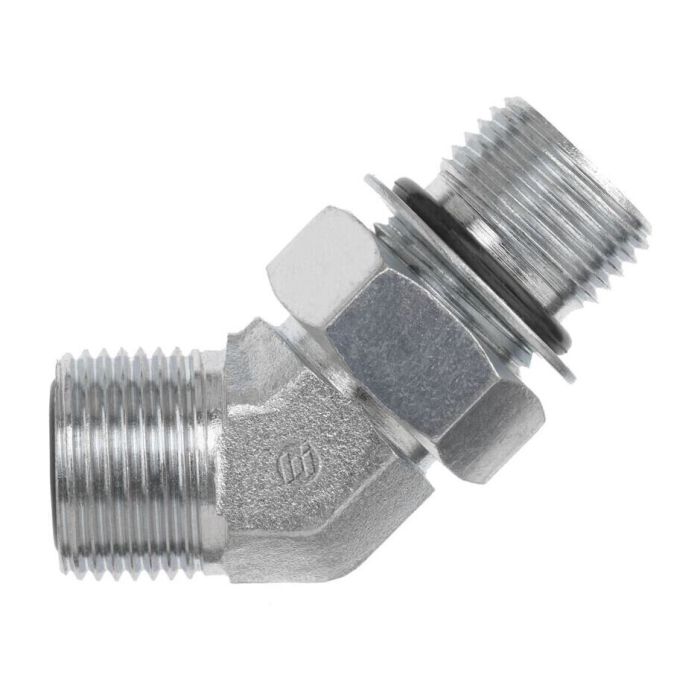

The 45-degree forged elbow adapter by Brennan Industries Inc is designed to meet high industry standards. It features a sturdy construction that ensures long-term reliability and performance in various industrial applications.

This elbow adapter includes an A Thread size of 11/16-16 and a B Thread size of 3/4-16 providing compatibility with multiple threading systems. The A Drill diameter measures 0.264 inches while the B Drill diameter is 0.378 inches making it suitable for various fluid transfer needs.

With a hex size of 0.938 inches and Jj flats of 0.750 inches this forged elbow adapter offers easy installation in tight spaces. The M Length is 0.740 inches and the N Length is 1.430 inches ensuring precise fitment and secure connections.

The 3/8-inch Tube O.D. allows for efficient fluid flow reducing the risk of leaks and ensuring optimal performance. This adapter is part of the FS6802-NWO-FG series reflecting its adherence to rigorous quality standards.

MPN: FS6802-06-08-NWO-FG

Supplier Part Number: FS6802-06-08-NWO-FG

Specifications

Brand BRENNAN	a Drill Dimensions 0.264 in	b Drill Dimensions 0.378 in	Connection Size 1 3/8 in	Connection Size 2 1/2 in	Connection Type Male ORFS, Male SAE ORB	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE Adjustable ORB	Dimension Standards SAE J1453, SAE J1926	Finish Trivalent Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 0.94 in	jj Flats Dimensions 3/4 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series FS6802-NWO-FG Series	Thread Size 11/16-16 x 3/4-16	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
FF6802-10-12	5/8 in	3/4 in	1-14 x 1-1/16-12
FF6802-20-20	1-1/4 in	1-1/4 in	1-11/16-12, 1-5/8-12
FF6802-24-24	1-1/2 in	1-1/2 in	2-12 x 1-7/8-12
FS6802-04-06-NWO-FG	1/4 in	3/8 in	9/16-18
FS6802-06-04-NWO-FG	3/8 in	1/4 in	11/16-16 x 7/16-20
FS6802-06-06-NWO-FG	3/8 in	3/8 in	11/16-16, 9/16-18
FS6802-08-06-NWO-FG	1/2 in	3/8 in	13/16-16 x 9/16-18 x 13/16-16
FS6802-08-08-NWO-FG	1/2 in	1/2 in	13/16-16 x 3/4-16
FS6802-08-10-NWO-FG	1/2 in	5/8 in	13/16-16 x 7/8-14
FS6802-10-10-NWO-FG	5/8 in	5/8 in	1-14 x 1-14 x 7/8-14
FS6802-12-10-NWO-FG	3/4 in	5/8 in	1-3/16-12, 7/8-14
FS6802-12-12-NWO-FG	3/4 in	3/4 in	1-3/16-16 x 1-1/16-12
FS6802-12-16-NWO	3/4 in	1 in	1-3/16-12 x 1-5/16-12
FS6802-16-12-NWO-FG	1 in	3/4 in	1-7/16-12 x 1-1/16-12
FS6802-16-16-NWO-FG	1 in	1 in	1-7/16-12, 1-5/16-12
FS6802-16-20-NWO-FG	1 in	1-1/4 in	1-7/16-12, 1-5/8-12

Product Questions & Answers (2)

Question by: Clint M on Jun 3, 2025, 6:41 AM

Reckon this'll hold up for hooking up some hydraulic lines on my backhoe? Gotta make sure it can take a beating.

Answer by: Customer Support on Jun 5, 2025, 6:47 AM

Designed for demanding industrial applications, this forged elbow adapter is built for long-term reliability in fluid transfer systems. The sturdy construction ensures it can withstand tough conditions.

Question by: Tommy R on Nov 30, 2025, 3:04 PM

trying to swap an elbow out, how do i know this one matches my threads?

Answer by: Customer Support on Dec 2, 2025, 7:07 AM

Check the two thread callouts. Side A is 11/16-16 and side B is 3/4-16. If your existing connections match those thread sizes, this forged 45 degree elbow adapter is the right fit style-wise for the threads.
