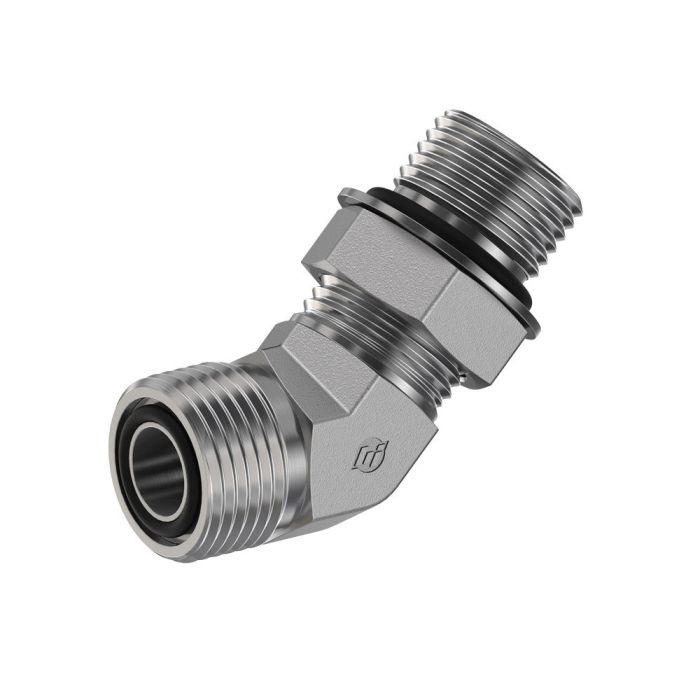

main product photo

08MFS-08MAORB 45 DEG ELBOW

Ask A Question

Description & Features

This 45-degree elbow features an 08MFS to 08MAORB connection, making it suitable for various hydraulic applications requiring a precise angle. This 08MFS-08MAORB 45 DEG ELBOW ensures a secure and reliable connection.

SKU: FS6802-08-08-NWO-FG

Supplier Part Number (MPN): null

Alternate Part Numbers: AFF2068T0808S, FF6802-08-08

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
0.94 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6802-NWO-FG Series
Thread Size
13/16-16 x 3/4-16

Product Questions & Answers (1)

Question by: Tammy C on Jul 26, 2025, 9:08 PM
Would this elbow work alright for connecting a hydraulic line at a 45-degree angle?
Answer by: Customer Support on Jul 28, 2025, 6:35 AM
This 45-degree elbow is indeed designed for hydraulic applications that need a precise 45-degree turn. It's got an 08MFS connection on one end and an 08MAORB on the other.
