08MFS-10MAORB 45 DEG ELBOW

Description & Features

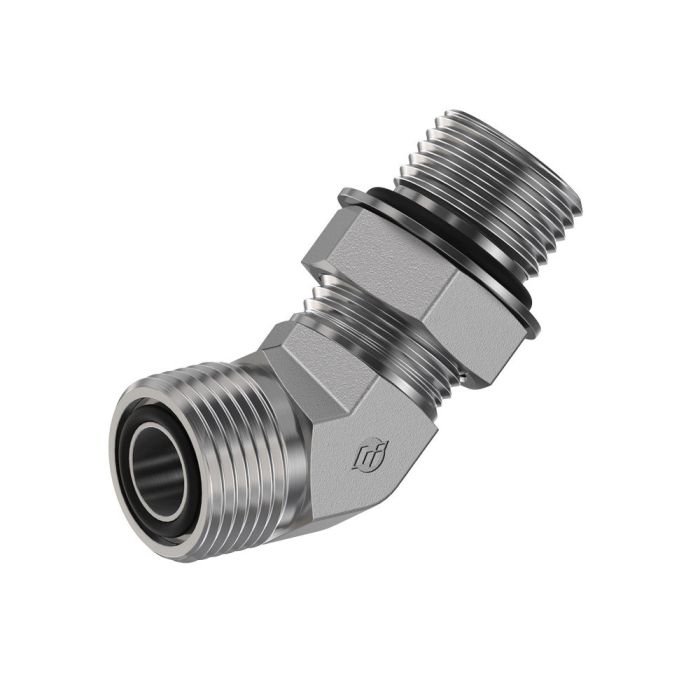

A 45-degree elbow fitting designed to redirect hydraulic line flow at a 45-degree angle, the 08MFS-10MAORB 45 Deg Elbow connects an SAE O-Ring Face Seal (ORFS) male end to a male SAE O-Ring Boss (ORB) port. The size designation indicates an 08 ORFS male end paired with a 10 male ORB connection, making this fitting suitable for routing lines in tight installations where a straight connection is not practical.

Commonly used in hydraulic assemblies and fluid power circuits, this elbow accommodates directional changes without requiring additional adapters or excessive line bending. The ORFS-to-ORB configuration provides a leak-resistant seal well suited to higher-pressure hydraulic systems.

SKU: FS6802-08-10-NWO-FG

Supplier Part Number (MPN): FS6802-08-10-NWO-FG

Alternate Part Numbers: AFF2068T0810S, FS6802-08-10-NWO

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
5/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1.06 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6802-NWO-FG Series
Thread Size
13/16-16 x 7/8-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
10MFS-12MAORB 45 DEG ELBOW

FF6802-10-12

5/8 in

3/4 in

1-14 x 1-1/16-12

20MFS-20MAORB 45 DEG ELBOW

FF6802-20-20

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

24MFS-24MAORB 45 DEG ELBOW

FF6802-24-24

1-1/2 in

1-1/2 in

2-12 x 1-7/8-12

04MFS-06MAORB 45 ELB FORG

FS6802-04-06-NWO-FG

1/4 in

3/8 in

9/16-18

06MFS-04MAORB 45 ELB FORG

FS6802-06-04-NWO-FG

3/8 in

1/4 in

11/16-16 x 7/16-20

06MFS-06MAORB 45 DEG ELBOW

FS6802-06-06-NWO-FG

3/8 in

3/8 in

11/16-16, 9/16-18

06MFS-08MAORB 45 ELB

FS6802-06-08-NWO-FG

3/8 in

1/2 in

11/16-16 x 3/4-16

08MFS-06MAORB 45 ELB FORG

FS6802-08-06-NWO-FG

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

08MFS-08MAORB 45 DEG ELBOW

FS6802-08-08-NWO-FG

1/2 in

1/2 in

13/16-16 x 3/4-16

10MFS-10MAORB 45 ELB FORG

FS6802-10-10-NWO-FG

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

12MFS-10MAORB 45 ELB FORG

FS6802-12-10-NWO-FG

3/4 in

5/8 in

1-3/16-12, 7/8-14

12MFS-12MAORB 45 DEG ELBOW

FS6802-12-12-NWO-FG

3/4 in

3/4 in

1-3/16-16 x 1-1/16-12

12MFS-16MAORB 45 DEG ELBOW

FS6802-12-16-NWO

3/4 in

1 in

1-3/16-12 x 1-5/16-12

16MFS-12MAORB 45 ELB FORG

FS6802-16-12-NWO-FG

1 in

3/4 in

1-7/16-12 x 1-1/16-12

16MFS-16MAORB 45 ELB

FS6802-16-16-NWO-FG

1 in

1 in

1-7/16-12, 1-5/16-12

16MFS-20MAORB 45 ELB FORG

FS6802-16-20-NWO-FG

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

Product Questions & Answers (1)

Question by: Howard G on Jun 25, 2025, 5:28 PM
Will this fitting work to connect an SAE O-Ring Face Seal to a regular SAE O-Ring Boss port?
Answer by: Customer Support on Jun 27, 2025, 10:32 AM
Yes, this 45-degree elbow is designed to connect an SAE ORFS male end to a male SAE ORB port, making it suitable for routing lines where a straight connection just won't work.
