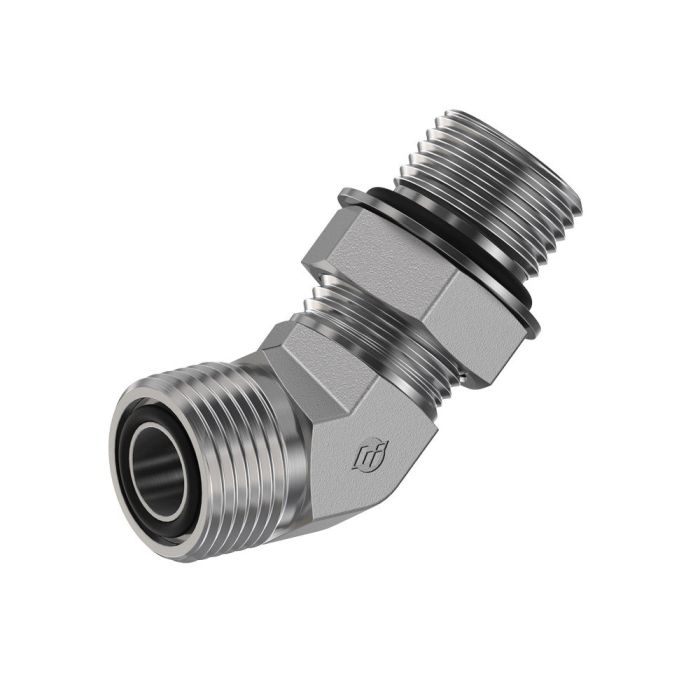

12MFS-12MAORB 45 DEG ELBOW

Description & Features

This 45-degree elbow features a 12MFS to 12MAORB connection.

SKU: FS6802-12-12-NWO-FG

Supplier Part Number (MPN): FS6802-12-12-NWO-FG

Alternate Part Numbers: AFF2068T1212S, FS6802-12-12-NWO

Brand BRENNAN	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Male ORFS, Male SAE ORB	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE Adjustable ORB	Dimension Standards SAE J1453, SAE J1926	Finish Trivalent Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 1-3/8 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series FS6802-NWO-FG Series	Thread Size 1-3/16-16 x 1-1/16-12

Question by: Warren M on Aug 21, 2025, 10:21 AM

Can this elbow handle hydraulic fluid alright?

Answer by: Customer Support on Aug 23, 2025, 8:34 AM

Yes, this 45-degree elbow is suitable for use with hydraulic fluids. It features a 12MFS to 12MAORB connection.
