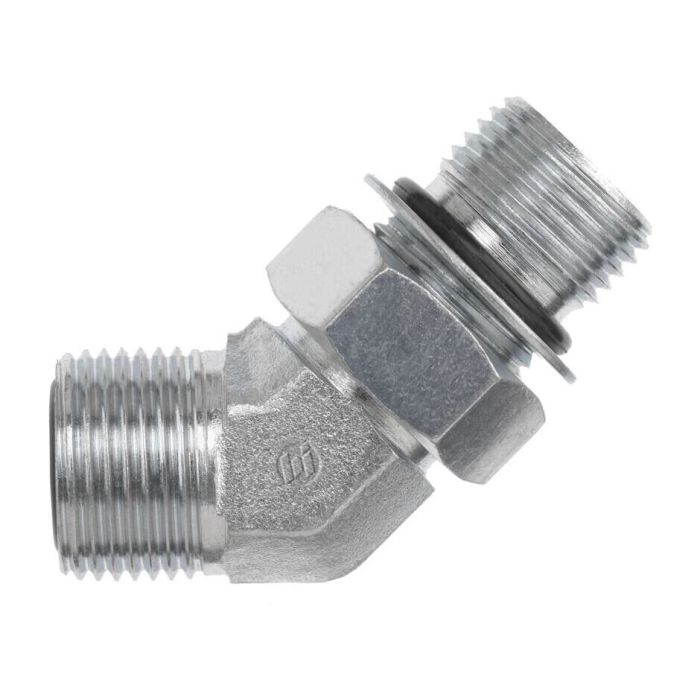

16MFS-16MAORB 45 ELB

Description & Features

Manufactured by Brennan Industries Inc the 16MFS-16MAORB 45 ELB connector offers robust performance in industrial applications. Crafted as a 45-degree elbow piece this forged component is designed for reliable use in high-demand settings.

Featuring a Tube O.D. of 1 inch the product boasts a precise fit for your specific needs. The main dimensions include an A Drill of 0.811 inches and an A Thread of 1-7/16-12 complemented by a B Drill of 0.811 inches and a B Thread of 1-5/16-12.

With a C Hex size of 1.625 inches and Jj Flats of 1.438 inches this adapter ensures both strength and ease of installation. Additionally the elbow has an M Length of 1.180 inches and an N Length of 2.060 inches providing a compact yet efficient adapter solution.

Series FS6802-NWO-FG reflects the commitment to quality and precision. The engineering behind the component ensures a high degree of reliability and performance for any technical requirement.

Supplier Part Number: FS6802-16-16-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS6802-16-16-NWO-FG	Product Weight 1.05 lbs
