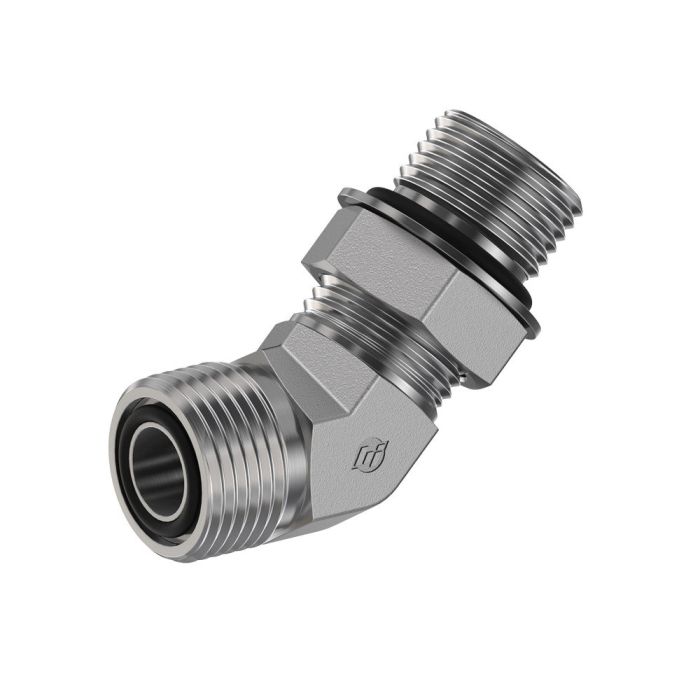

16MFS-20MAORB 45 ELB FORG

Ask A Question

Description & Features

This forged 45-degree elbow features a 1-7/16-12 A thread with a 0.811 drill size, and a 1-5/8-12 B thread with a 1.024 drill size.

The 16MFS-20MAORB 45 ELB FORG is part of the FS6802-NWO-FG series and has a 1-inch tube OD, a C hex size of 1.875 inches, Jj flats of 1.625 inches, an M length of 1.26 inches, and an N length of 2.11 inches.

SKU: FS6802-16-20-NWO-FG

Supplier Part Number (MPN): FS6802-16-20-NWO-FG

Alternate Part Numbers: AFF2068T1620S, FF6802-16-20

Specifications

Brand
BRENNAN
a Drill Dimensions
0.811 in
b Drill Dimensions
1.024 in
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-7/8 in
jj Flats Dimensions
1-5/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6802-NWO-FG Series
Thread Size
1-7/16-12, 1-5/8-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Pete R on Oct 24, 2025, 8:23 AM
Is this elbow made for high-pressure applications, or should I stick to lower pressure stuff?
Answer by: Customer Support on Oct 26, 2025, 8:15 AM
This forged elbow is designed for robust hydraulic systems, so it can handle higher pressures within the appropriate specifications. Always check pressure ratings for your specific setup.
