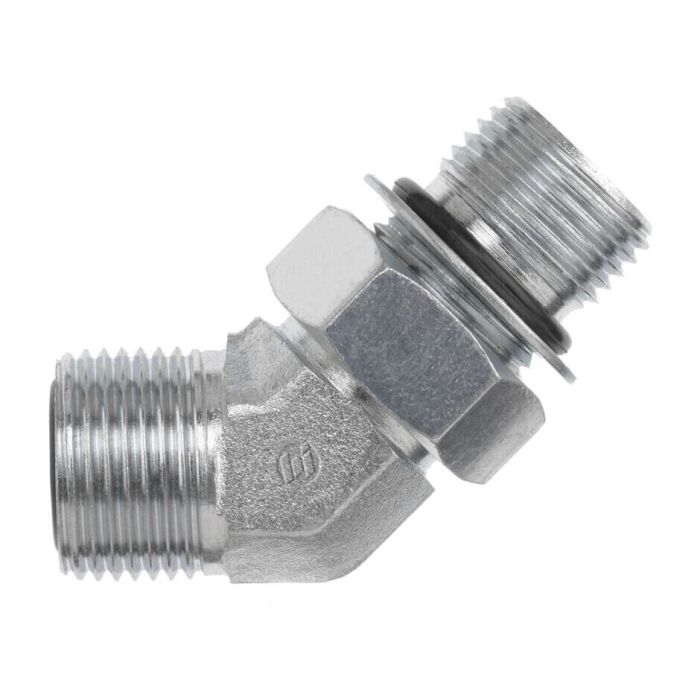

BRENNAN 45 ELBOW 1-1/4" M 1-1/4 M ORING

A forged 45-degree elbow fitting designed for high-pressure hydraulic lines, the Brennan 45 Elbow 1-1/4" M 1-1/4" M O-Ring connects male O-ring face seal and male O-ring boss ports in a compact angled configuration. Forged construction provides the structural integrity required for demanding hydraulic circuits where reliable directional changes are critical.

This fitting carries a 1-1/4" tube OD and features a 1-11/16-12 thread on the A-end and a 1-5/8-12 thread on the B-end, with an overall N length of 2.110" and M length of 1.260". The 1.875" C hex and 1.625" JJ flats allow for proper wrench engagement during installation. Both ports share a 1.024" drill diameter. Manufactured by Brennan Industries and part of the FS6802-NWO-FG series, this fitting is well-suited for use in industrial hydraulic assemblies requiring a reliable 45-degree male-to-male connection.

SKU: FS6802-20-20-NWO-FG

Supplier Part Number (MPN): FS6802-20-20-NWO-FG
