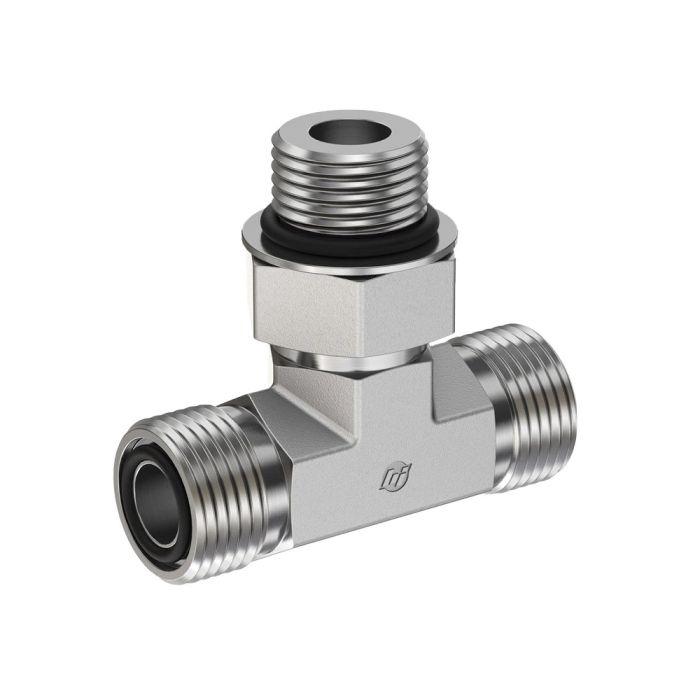

04MFS-04MFS-04MAORB BRANCH TEE

Ask A Question

Description & Features

The 04MFS-04MFS-04MAORB Branch Tee supplied by Brennan Industries Inc offers versatile functionality for industrial applications. Expertly forged its durable construction ensures reliable performance in demanding environments.

The tee features an A1 thread of 9/16-18 and a drill size of 0.172 identical to the A2 specifications alongside a B thread of 7/16-20. Its C hex size is 0.625 providing secure fitting while the Jj flats measure 0.562. This branch tee accommodates a tube O.D. of 1/4 and has a length of 0.85 for both M1 and M2 sections. The overall length is 1.29.

Particularly suited for systems requiring precise fluid control the component's robust structure aids in maintaining operational integrity. Within the FS6803-NWO-FG series this branch tee is tailored for specialized industrial use.

MPN: FS6803-04-04-04-NWO-FG

Supplier Part Number: FS6803-04-04-04-NWO-FG

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.172 in
a2 Drill Dimensions
0.172 in
b Drill Dimensions
0.172 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
1.7 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
5/8 in
jj Flats Dimensions
0.562 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6803-NWO-FG Series
Thread Size
9/16-18, 7/16-20
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Product Questions & Answers (1)

Question by: Glen S on Aug 5, 2025, 2:05 PM
trying to match up a branch tee i’ve got, are the two straight-through ends the same size on this one?
Answer by: Customer Support on Aug 7, 2025, 6:09 AM
Both run ends match on this tee. A1 and A2 are 9/16-18 thread with a 0.172 drill size on each side, so the straight-through ports are identical.
