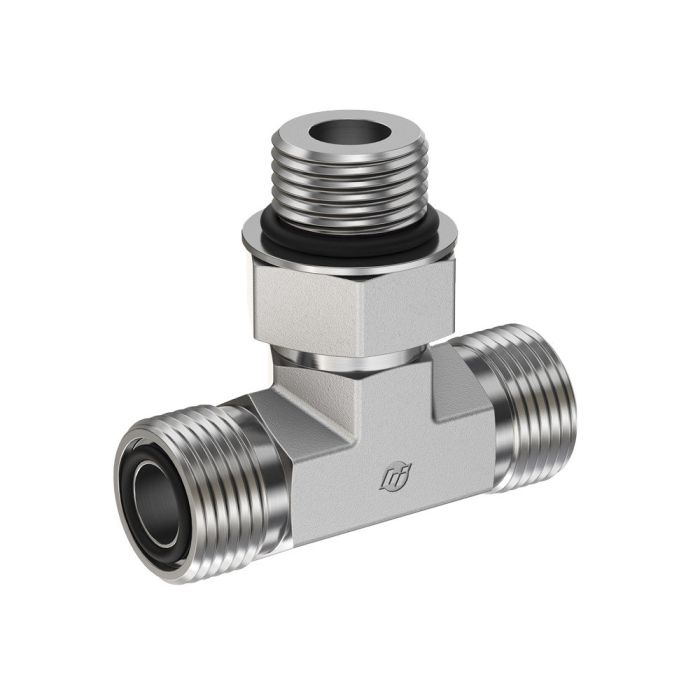

main product photo

06MFS-06MFS-06MAORB BRANCH TEE

Ask A Question

Description & Features

The Branch Tee from Brennan Industries Inc. identified as FS6803-06-06-06-NWO-FG is expertly forged to provide long-lasting reliable service. Crafted with precision it features two 11/16-16 threads and one 9/16-18 thread ensuring a secure fit in hydraulic and industrial applications.

With a tube outer diameter of 3/8 this branch tee offers an efficient solution for your tubing needs. The compact dimensions include a C hex size of 0.750 and a length of 1.45 inches facilitating easy integration and handling.

The 0.264 drill size for both A1 and A2 threads underscores its robust construction. Measuring at 0.98 inches in both M1 and M2 lengths it provides the necessary specifications to meet various demanding environments.

Each component's exacting dimensions ensure compatibility and performance in high-pressure settings. This branch tee enhances the reliability of hydraulic connections making it a critical component in specialized applications.

Supplier Part Number: FS6803-06-06-06-NWO-FG

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.264 in
a2 Drill Dimensions
0.264 in
b Drill Dimensions
0.264 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Size 3
3/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
1.96 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
3/4 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6803-NWO-FG Series
Thread Size
11/16-16, 9/16-18
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Product Questions & Answers (1)

Question by: Neal W on Aug 11, 2025, 11:39 AM
Reckon this tee fitting will hold up okay in a hydraulic setup for my log splitter?
Answer by: Customer Support on Aug 13, 2025, 8:08 AM
Designed for hydraulic applications, this branch tee is forged to ensure reliable service even in high-pressure settings.
