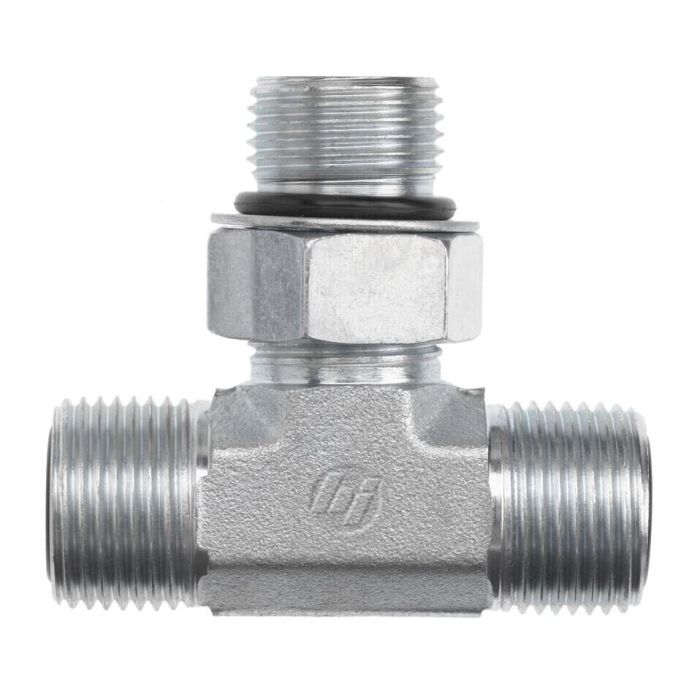

06MFS-06MFS-06MAORB BRANCH TEE

The Branch Tee from Brennan Industries Inc. identified as FS6803-06-06-06-NWO-FG is expertly forged to provide long-lasting reliable service. Crafted with precision it features two 11/16-16 threads and one 9/16-18 thread ensuring a secure fit in hydraulic and industrial applications.

With a tube outer diameter of 3/8 this branch tee offers an efficient solution for your tubing needs. The compact dimensions include a C hex size of 0.750 and a length of 1.45 inches facilitating easy integration and handling.

The 0.264 drill size for both A1 and A2 threads underscores its robust construction. Measuring at 0.98 inches in both M1 and M2 lengths it provides the necessary specifications to meet various demanding environments.

Each component's exacting dimensions ensure compatibility and performance in high-pressure settings. This branch tee enhances the reliability of hydraulic connections making it a critical component in specialized applications.

Supplier Part Number: FS6803-06-06-06-NWO-FG
