FS6803-08-08-08-NWO-FG

Description & Features

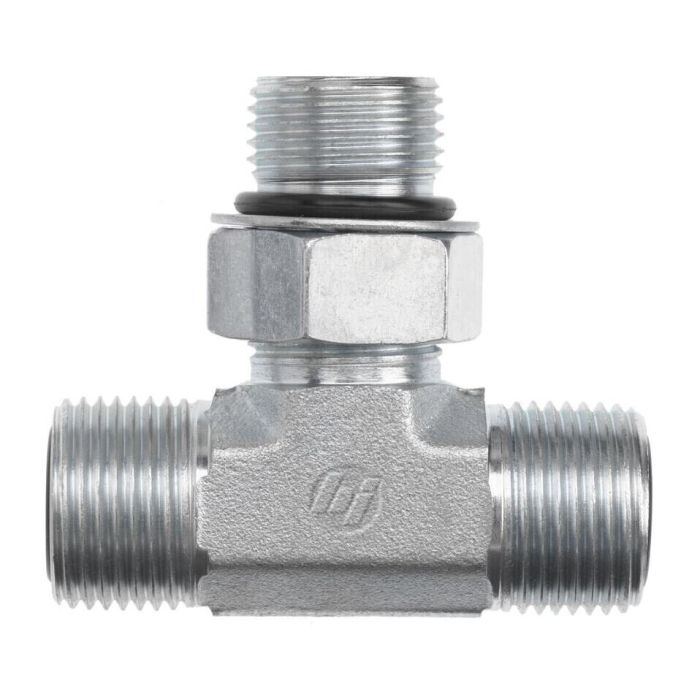

The FS6803-08-08-08-NWO-FG by Brennan Industries Inc. is a precision-engineered 08MFS-08MFS-08MAORB Branch Tee Forged fitting designed for reliable integration into complex hydraulic systems. This component features a robust structure with a 13/16-16 thread on both A1 and A2 drill points and a 3/4-16 thread on the B Drill point ensuring a secure fit in various applications.

Measuring an M1 length of 1.10 and an M2 length of 1.10 it is engineered for optimal performance balancing durability and efficiency. With a tube O.D. of 1/2 and a C Hex measurement of 0.937 it is meticulously crafted to meet demanding standards.

Key dimensions include a Jj Flats size of 0.750 and an overall N length of 1.60 catering to precise specifications within industrial contexts. The A1 and A2 drills have an exact 0.378 measurement consistent with the B Drill for uniformity and reliability.

Supplier Part Number: FS6803-08-08-08-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS6803-08-08-08-NWO-FG	Product Weight 0.36 lbs

Product Questions & Answers (3)

Question by: Terry B on Aug 21, 2025, 2:51 PM

Will this branch tee hold up under pretty constant pressure in a hydraulic setup?

Answer by: Customer Support on Aug 23, 2025, 6:09 AM

Designed for reliable integration into hydraulic systems, this forged fitting has a robust structure to ensure a secure fit and optimal performance.

Question by: Warren H on Apr 28, 2025, 7:15 PM

i got a branch tee on the bench, how do i tell if this FS6803-08-08-08-NWO-FG is the right thread setup for it?

Answer by: Customer Support on Apr 30, 2025, 9:24 AM

The key identifiers are the threads and tube size. This branch tee has 13/16-16 threads on both A1 and A2 ports, and a 3/4-16 thread on the B port. It is also sized for 1/2 inch tube O.D., with A1, A2, and B drill dimensions all listed at 0.378.

Question by: Roy P on May 13, 2025, 3:23 PM

Got a branch tee setup on a hydraulic line running 1/2 inch tube and need something that'll tie into a 3/4-16 port on one end. this the right piece for that?

Answer by: Customer Support on May 15, 2025, 6:13 AM

For a 1/2 inch tube O.D. application with a 3/4-16 port on the B side, this fitting checks out. The B drill point carries a 3/4-16 thread, and both the A1 and A2 ports run 13/16-16. All three drill points share the same 0.378 bore measurement, so flow stays consistent across the branch. The forged construction keeps it solid under the kind of pressure cycling you'd expect in a working hydraulic circuit.
