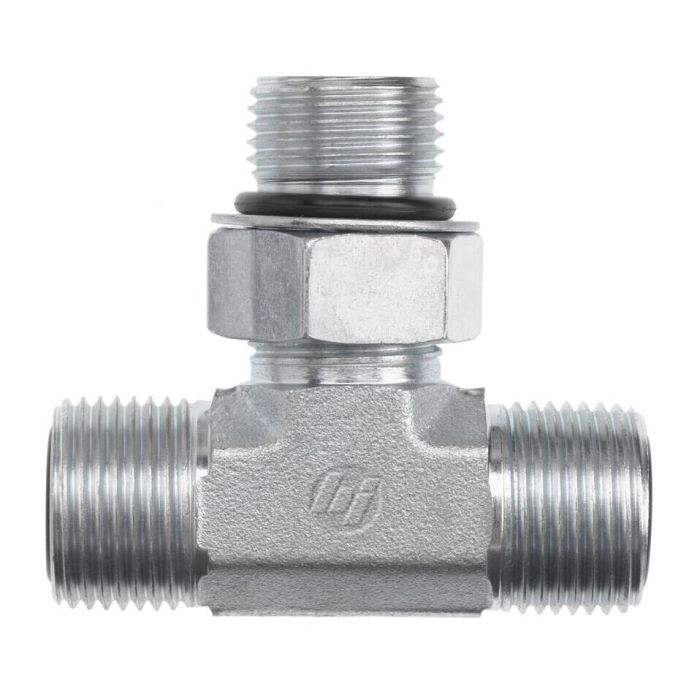

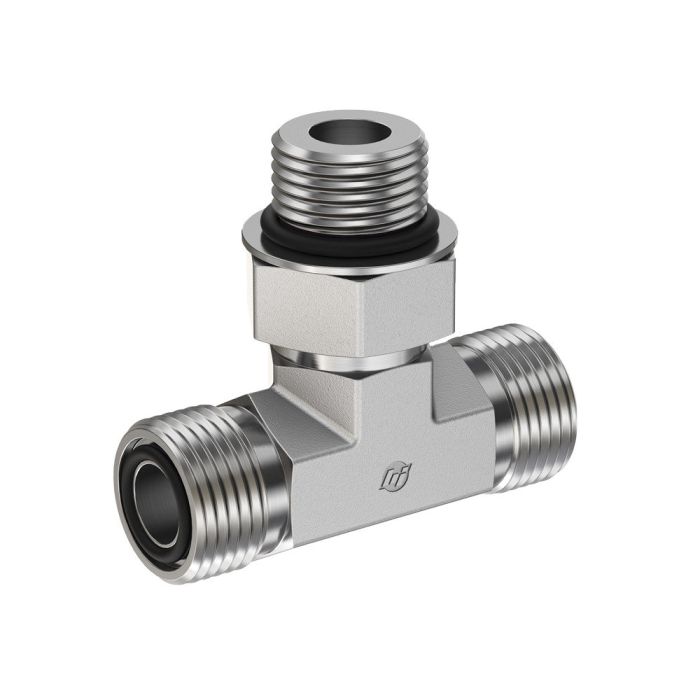

10MFS-10MFS-10MAORB BRANCH TEE

Ask A Question

Description & Features

This forged branch tee features three ports, two with 1-14 threads and a 0.484 Brennan A1 drill size, and one with 7/8-14 threads and a 0.484 Brennan B drill size. The 10MFS-10MFS-10MAORB BRANCH TEE is part of the FS6803-NWO-FG series and accommodates a 5/8 inch tube OD.

The fitting has a Brennan C hex size of 1.062 inches, Brennan Jj Flats of 1.062 inches, Brennan M1 Length of 1.31 inches, Brennan M2 Length of 1.31 inches, and a Brennan N Length of 1.97 inches.

SKU: FS6803-10-10-10-NWO-FG

Supplier Part Number (MPN): FS6803-10-10-10-NWO-FG

Alternate Part Numbers: AFF1861T1010S, FF6803-10-10-10

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.484 in
a2 Drill Dimensions
0.484 in
b Drill Dimensions
0.484 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Size 3
5/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
2.62 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.06 in
jj Flats Dimensions
1.062 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6803-NWO-FG Series
Thread Size
1-14 x 1-14 x 7/8-14
Tube Outside Diameter
5/8 in

Product Questions & Answers (1)

Question by: Randy H on Sep 25, 2025, 11:41 AM
So, what size are the threads on this thing?
Answer by: Customer Support on Sep 26, 2025, 9:51 PM
It comes with two ports having 1-14 threads and one port with 7/8-14 threads. All three ports have a 0.484 Brennan drill size.
