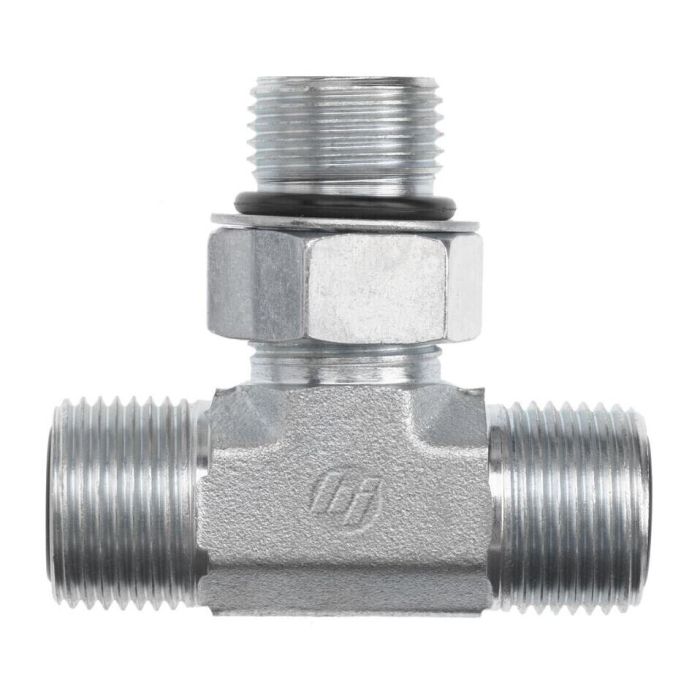

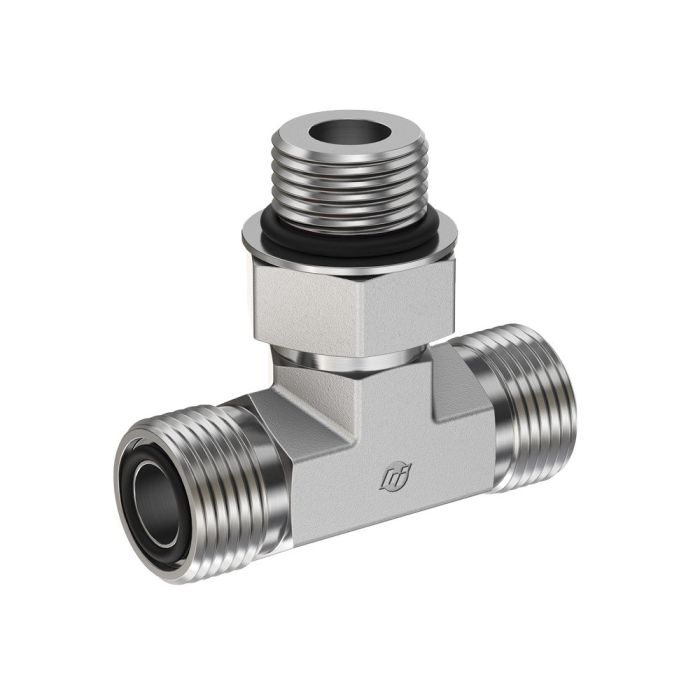

16MFS-16MFS-16MAORB BRANCH TEE FORGED

Ask A Question

Description & Features

The 16MFS-16MFS-16MAORB Branch Tee Forged is a durable and reliable hydraulic component designed for seamless hydraulic system integration. Featuring a Brennan A1 and A2 drill size of 0.811 and thread size of 1-7/16-12, this branch tee ensures secure and efficient connections. The tee also includes a Brennan B drill size of 0.811 with a 1-5/16-12 thread size, providing versatility for various industrial applications. Its robust construction is evident from the Brennan C Hex size of 1.625 and Jj Flats of 1.438, offering enhanced stability and torque resistance.

Manufactured by Brennan Industries, this forged branch tee is part of the FS6803-NWO-FG series, known for its reliability and compatibility with hydraulic systems. With a tube outer diameter of 1 inch and specific lengths for M1, M2, and N components, this tee is engineered for optimal performance and fit. Ideal for demanding environments, it ensures long-lasting functionality and resilience.

SKU: FS6803-16-16-16-NWO-FG

Supplier Part Number (MPN): FS6803-16-16-16-NWO-FG

Alternate Part Numbers: AFF1861T1616S, FF6803-16-16-16

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.811 in
a2 Drill Dimensions
0.811 in
b Drill Dimensions
0.811 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
3.28 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1-5/8
jj Flats Dimensions
1.438 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5500 psi
Operating Temperature
-40 to 250 deg F
Series
FS6803-NWO-FG Series
Thread Size
1-7/16-12, 1-5/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Gene G on Apr 27, 2025, 7:26 AM
got two 1 inch tube lines and need a tee, are the two straight-through ends on this one the same thread
Answer by: Customer Support on Apr 28, 2025, 3:15 PM
On the run (the two straight-through ports), both ends use the same specs: 0.811 drill with 1-7/16-12 threads (Brennan A1 and A2). It is built for 1 inch tube OD.
