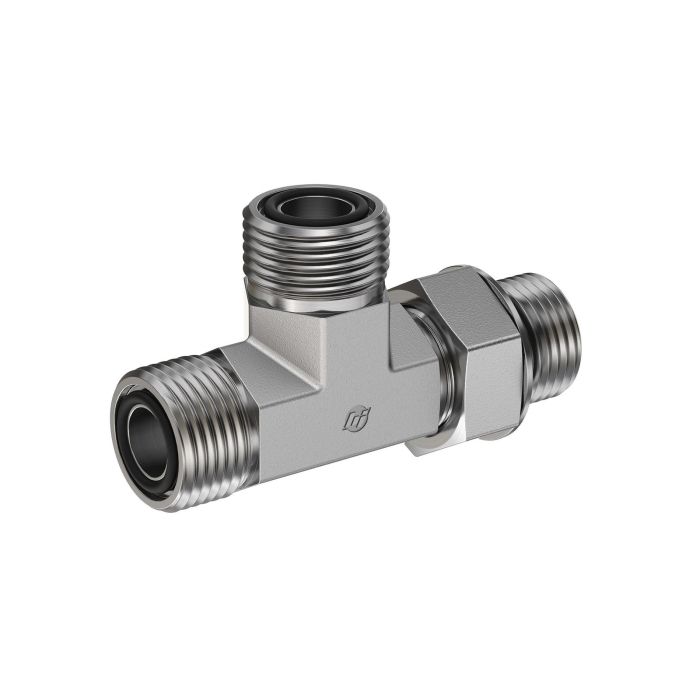

06MFS-08MAORB-06MFS RUN TEE FORG

Description & Features

Designed for industrial hydraulic systems, the 06MFS-08MAORB-06MFS RUN TEE FORG offers reliable and durable connections. This forged tee fitting is engineered with precision, featuring an 11/16-16 thread for both Brennan A1 and A2 connections, ensuring compatibility with a range of hydraulic components. Its robust construction includes a Brennan B connection with a 3/4-16 thread, providing versatility in various applications.

With a hex size of 0.938 and a tube outer diameter of 3/8 inches, this run tee fitting is tailored for efficient fluid transfer. The product, associated with the Brennan Series FS6804-NWO-FG, exhibits a well-balanced design with equal M1 and M2 lengths of 1.040 inches and an N length of 1.600 inches, enhancing its stability and integration within hydraulic setups. Manufactured by Brennan Industries, this fitting meets the rigorous demands of industrial environments.

SKU: FS6804-06-08-06-NWO-FG

Supplier Part Number (MPN): FS6804-06-08-06-NWO-FG

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.264 in
a2 Drill Dimensions
0.264 in
b Drill Dimensions
0.378 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Size 3
3/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Connection Type 3
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J1926
Dimensions
2.64 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
0.94 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6804-NWO-FG Series
Thread Size
11/16-16 x 3/4-16
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Size 3 Thread Size Price Action
16MFS-16MAORB-16MFS RUN TEE

FF6804-16-16-16

1 in

1 in

1-7/16-12, 1-5/16-12

04MFS-04MAORB-04MFS Tee Forged

FS6804-04-04-04-NWO-FG

1/4 in

1/4 in

9/16-18, 7/16-20

04MFS-06MAORB-04MFS RUN TEE

FS6804-04-06-04-NWO-FG

1/4 in

3/8 in

9/16-18

ADAPTER 6MFF-6MORB-6MFF TEE

FS6804-06-06-06-NWO-FG

3/8 in

3/8 in

3/8 in

11/16-16, 9/16-18

08MFS-08MAORB-08MFS TEE FORGED

FS6804-08-08-08-NWO-FG

1/2 in

1/2 in

1/2 in

13/16-16 x 3/4-16

10MFS-10MAORB-10MFS TEE FORGED

FS6804-10-10-10-NWO-FG

5/8 in

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

12MFS-12MAORB-12MFS RUN TEE

FS6804-12-12-12-NWO-FG

3/4 in

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

Product Questions & Answers (1)

Question by: Scott J on Mar 10, 2026, 6:00 PM
What size is that hex head on the side?
Answer by: Customer Support on Mar 12, 2026, 1:52 PM
That hex fitting measures 0.938 inches across, if you're looking for the right wrench size.
