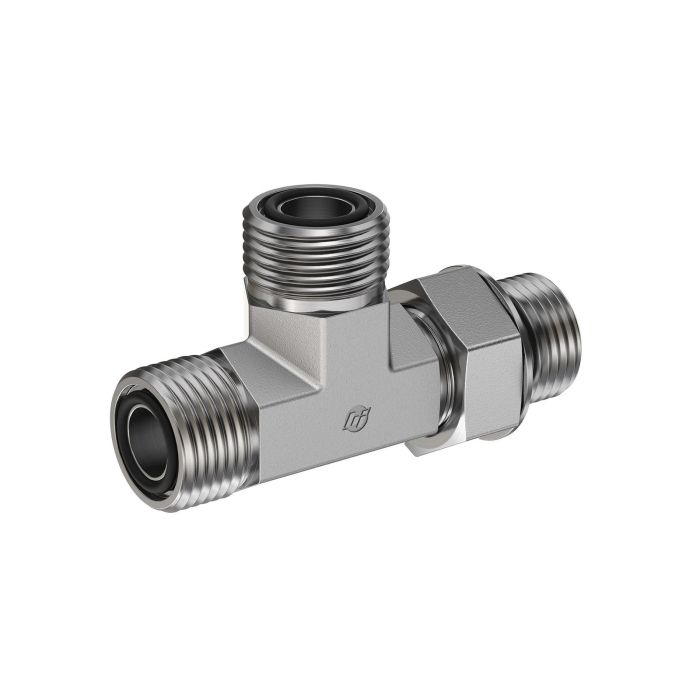

10MFS-10MAORB-10MFS TEE FORGED

Description & Features

Forged construction and a three-port tee configuration make this fitting well suited for hydraulic lines requiring a branch connection with mixed thread types. The 10MFS-10MAORB-10MFS Tee Forged from Brennan Industries combines two 1-14 male flat-seat ports with a 7/8-14 male O-ring boss (ORB) branch port, allowing integration of flat-face and ORB connections within a single fitting body.

Designed for 5/8 in. OD tube lines, the fitting features a 0.484 in. bore across all three ports and a 1.062 in. hex on both the C hex and JJ flats. The M1 and M2 lengths each measure 1.310 in., with an overall N length of 1.970 in. The forged body provides structural integrity suited to demanding hydraulic service. This fitting belongs to Brennan's FS6804-NWO-FG series.

SKU: FS6804-10-10-10-NWO-FG

Supplier Part Number (MPN): FS6804-10-10-10-NWO-FG

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.484 in
a2 Drill Dimensions
0.484 in
b Drill Dimensions
0.484 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Size 3
5/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Connection Type 3
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J1926
Dimensions
3.28 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.06 in
jj Flats Dimensions
1.062 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6804-NWO-FG Series
Thread Size
1-14 x 1-14 x 7/8-14
Tube Outside Diameter
5/8 in
