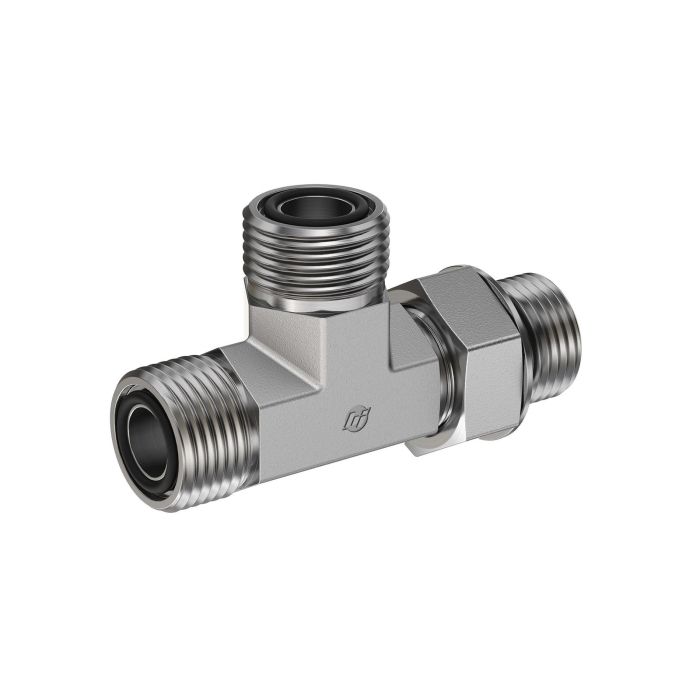

main product photo

12MFS-12MAORB-12MFS RUN TEE

Ask A Question

Description & Features

The 12MFS-12MAORB-12MFS RUN TEE is a versatile fitting suitable for various industrial applications. Designed with precision it features a 0.609 drill size and a 1-3/16-12 A1 thread and A2 thread ensuring compatibility with multiple configurations.

Engineered for robust performance it has a 1-1/16-12 B thread enhancing its adaptability. The C hex size of 1.375 and Jj flats size of 1.188 provide the necessary stability and ease of installation.

This forged tee has a tube outer diameter of 3/4 making it compatible with standard industry measurements. The M1 and M2 lengths of 1.47 along with the overall N length of 2.17 offer ample alignment and connectivity options in various setups.

Constructed to meet high standards this fitting is part of the FS6804-NWO-FG series ensuring long-lasting durability and reliability.

Supplier Part Number: FS6804-12-12-12-NWO-FG

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.609 in
a2 Drill Dimensions
0.609 in
b Drill Dimensions
0.609 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Size 3
3/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Connection Type 3
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J1926
Dimensions
3.64 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1-3/8 in
jj Flats Dimensions
1.188 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6804-NWO-FG Series
Thread Size
1-3/16-12 x 1-1/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (1)

Question by: Todd C on Aug 13, 2025, 10:47 AM
got a 3/4 tube line running off a manifold block and need to tee it off to a second circuit, this fitting work for that kind of setup?
Answer by: Customer Support on Aug 14, 2025, 1:00 PM
For a 3/4 tube OD application, the tube O.D. on this fitting matches right up at 3/4 inch. The run ports both carry a 1-3/16-12 thread on the A1 and A2 ends, with the branch port coming in at 1-1/16-12 on the B end. That combination of a straight run tee with a stepped-down branch thread is pretty common when you're splitting off to a smaller line or a different port type. As long as your manifold port and your branch connection match those thread specs, you'd be in good shape.
