06FFSS-06MAORB 90 DEG ELBOW FORGED

Description & Features

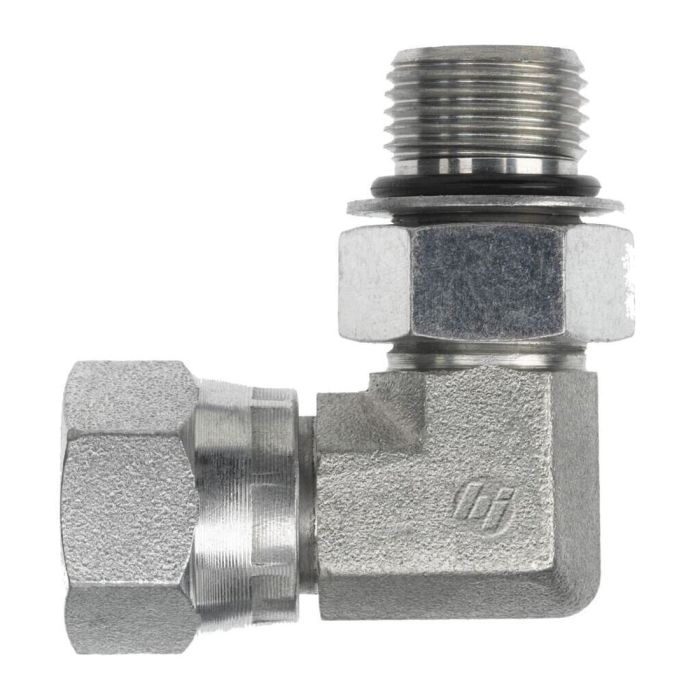

This forged 90-degree elbow features a 3/8 inch tube OD, and is constructed from FS6809-NWO-FG series materials. The 06FFSS-06MAORB 90 DEG ELBOW FORGED offers reliable performance in demanding hydraulic applications. Brennan A hole diameter is 0.264 inches with an 11/16-16 thread, while the Brennan B hole diameter is also 0.264 inches with a 9/16-18 thread.

Additional dimensions include a Brennan Aaa length of 1.15 inches and a Brennan N length of 1.450 inches. The elbow features a C1 hex size of 0.812 inches and a C2 hex size of 0.750 inches, along with Brennan Jj flats measuring 0.750 inches.

SKU: FS6809-06-06-NWO-FG

Supplier Part Number (MPN): FS6809-06-06-NWO-FG

Alternate Part Numbers: FF6809-06-06

Specifications

Brand BRENNAN	a Hole Dimensions 0.264 in	b Hole Dimensions 0.264 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female ORFS Swivel, Male SAE ORB	Connection Type 1 Female SAE ORFS Swivel	Connection Type 2 Male SAE Adjustable ORB	Dimension Standards SAE J1453, SAE J1926	Finish Trivalent Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 0.812 x 0.75 in	jj Flats Dimensions 3/4 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series FS6809-NWO-FG Series	Thread Size 11/16-16, 9/16-18	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Product Questions & Answers (1)

Question by: Tammy G on Dec 7, 2025, 1:06 PM

Is this elbow fitting gonna hold up if I'm running hydraulics pretty much all day long?

Answer by: Customer Support on Dec 8, 2025, 5:14 PM

This forged 90-degree elbow is designed for demanding hydraulic applications, so it should definitely be able to handle continuous use.
