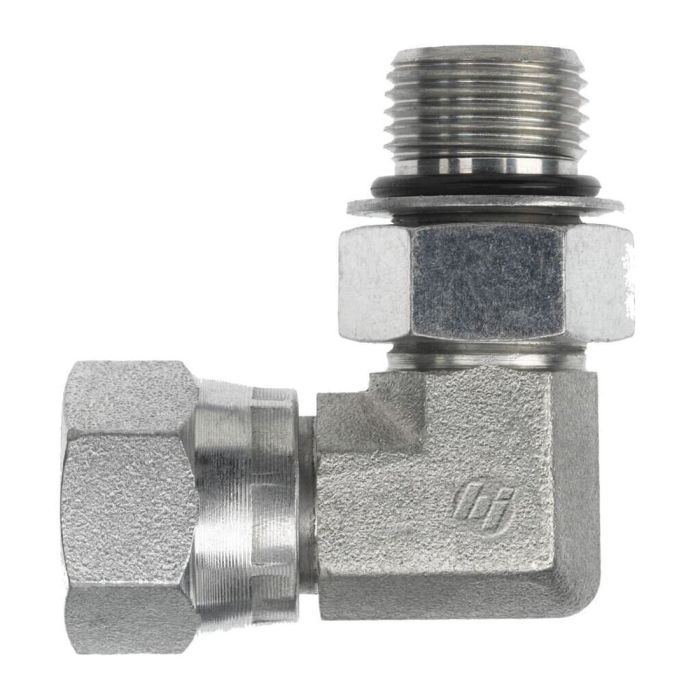

main product photo

08FFSS-08MAORB 90 DEG ELBOW FORGED

Ask A Question

Description & Features

This forged 90-degree elbow features a 1/2 inch tube OD and is constructed from durable materials for reliable performance in demanding hydraulic applications. The 08FFSS-08MAORB 90 DEG ELBOW FORGED is designed to provide a secure and leak-free connection.

This elbow fitting is part of the FS6809-NWO-FG series and features a 13/16-16 Brennan A thread and a 3/4-16 Brennan B thread. It is suitable for a wide range of hydraulic systems.

SKU: FS6809-08-08-NWO-FG

Supplier Part Number (MPN): FS6809-08-08-NWO-FG

Specifications

Brand
BRENNAN
a Hole Dimensions
0.358 in
b Hole Dimensions
0.378 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female ORFS Swivel, Male SAE ORB
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.94 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6809-NWO-FG Series
Thread Size
13/16-16 x 3/4-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (1)

Question by: Darryl C on Sep 12, 2025, 5:23 PM
Will this elbow handle the same pressures as my current forged fitting?
Answer by: Customer Support on Sep 14, 2025, 12:50 PM
This forged 90-degree elbow is built for demanding hydraulic applications, so as long as your pressures are within standard hydraulic system parameters, it should perform reliably.
