FS6809-12-12-NWO-FG

Description & Features

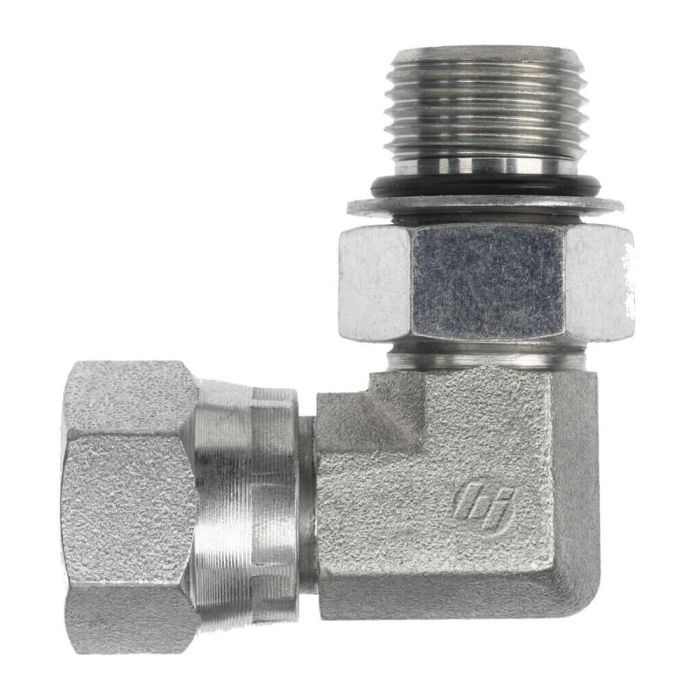

This 90-degree forged elbow from Brennan Industries connects a 1-1/2 in. O-ring face seal (ORFS) female port to a 1-1/2 in. male O-ring boss (ORB) port, making it well suited for routing hydraulic lines where direction changes and mixed-port connections are required. The forged construction provides consistent wall integrity and mechanical strength appropriate for hydraulic circuit use.

The FS6809-12-12-NWO-FG is designed for systems where ORFS and ORB fittings must interface at a right angle, offering a reliable seal at both connection points. The female ORFS end uses a flat face with an O-ring to prevent leakage under pressure, while the male ORB end threads into a boss port for a secure, leak-resistant assembly.

SKU: FS6809-12-12-NWO-FG

Supplier Part Number (MPN): FS6809-12-12-NWO-FG

Alternate Part Numbers: FF6809-12-12, FS6809-12-12-NWO

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female ORFS Swivel, Male SAE ORB
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-3/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6809-NWO-FG Series
Thread Size
1-3/16-12 x 1-1/16-12

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
06FFSS-06MAORB 90 DEG ELBOW FORGED

FS6809-06-06-NWO-FG

3/8 in

3/8 in

11/16-16, 9/16-18

08FFSS-08MAORB 90 DEG ELBOW FORGED

FS6809-08-08-NWO-FG

1/2 in

1/2 in

13/16-16 x 3/4-16

16FFSS-16MAORB 90 ELBOW FORGED

FS6809-16-16-NWO-FG

1 in

1 in

1-7/16-12, 1-5/16-12

Product Questions & Answers (2)

Question by: Roger B on Jan 23, 2026, 10:39 AM
Reckon this'll hook up a 1-1/2" O-ring face seal to a 1-1/2" male O-ring boss alright?
Answer by: Customer Support on Jan 25, 2026, 6:05 AM
Precisely, this 90-degree elbow is intended to connect those exact port types, providing a secure and leak-resistant seal for your hydraulic lines.
Question by: Dominic R on Oct 27, 2026, 5:06 PM
Is this actually in stock? What would delivery time be to 77336.
Answer by: Sean Suriel (HSC) on Oct 28, 2026, 6:50 AM
Yes, the part is in stock and the estimated delivery time is 2-4 days
