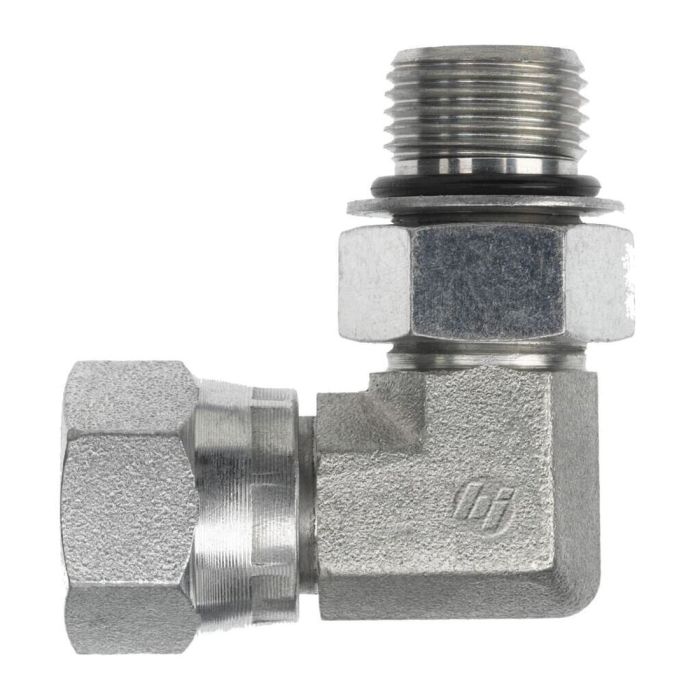

16FFSS-16MAORB 90 ELBOW FORGED

Forged construction gives this 90-degree elbow a strength advantage in high-demand hydraulic circuits where a cast or fabricated fitting would be inadequate. The 16FFSS-16MAORB 90 Elbow Forged connects a 1-7/16-12 female face seal end to a 1-5/16-12 male O-ring boss port, making it well suited for routing hydraulic lines at a right angle in tight installations. Both hex sizes measure 1.625 inches, with a JJ flats dimension of 1.438 inches, supporting consistent wrench engagement during installation and service.

Designed for 1-inch tube OD applications, this fitting is part of the Brennan Industries FS6809-NWO-FG series. The face seal end provides a leak-resistant metal-to-metal seal with an O-ring, while the male O-ring boss end threads directly into a port or manifold. Overall geometry, with an A length of 2.10 inches and an N length of 2.35 inches, keeps the assembly compact without sacrificing thread engagement.

SKU: FS6809-16-16-NWO-FG

Supplier Part Number (MPN): FS6809-16-16-NWO-FG

Alternate Part Numbers: FF6809-16-16
