BRENNAN FS7001-04-14

Description & Features

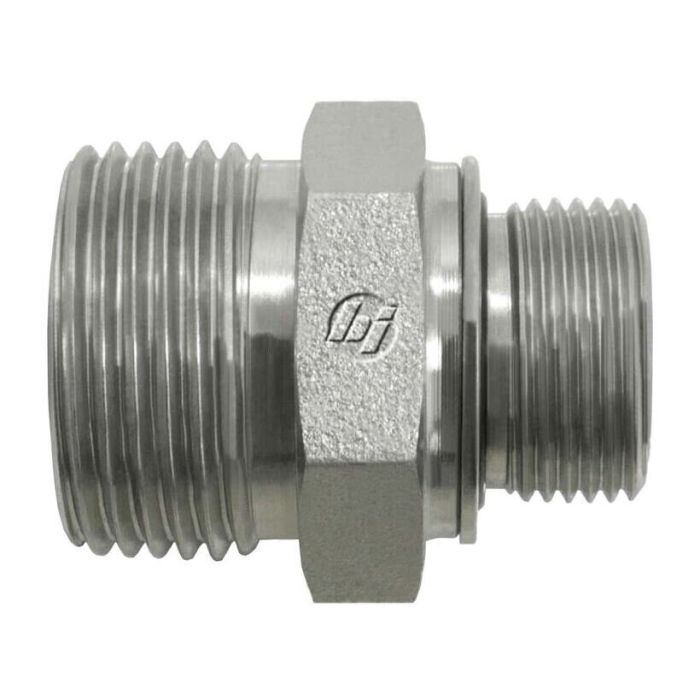

The BRENNAN FS7001-04-14 is a straight steel fitting in the FS7001-ORR series.

This fitting features a 9/16-18 Male Face Seal O-Ring thread, conforming to SAE J1453 standards, and a M14X1.5 Male Metric O-Ring & Ret Ring thread, designed for ISO 9974 ports. The O-ring seal is constructed from NBR (Nitrile Butadiene Rubber).

SKU: FS7001-04-14

Supplier Part Number (MPN): FS7001-04-14

Specifications

Additional Information Nitrile Seal	Connection Size 1 1/4 in	Connection Size 2 14 mm	Connection Type Male Metric, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Metric ORB	Dimension Standards SAE J1453	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 3/4 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series FS7701 Series	Thread Size 9/16-18 x M14x1.5	Thread Specification B2 For ISO 9974 Port

Product Questions & Answers (1)

Question by: Donna W on Apr 27, 2025, 8:31 PM

So this is a straight fitting, right? Just making sure I'm seeing that correctly.

Answer by: Customer Support on Apr 29, 2025, 6:33 PM

That's right. This is a straight steel fitting in the FS7001-ORR series.
