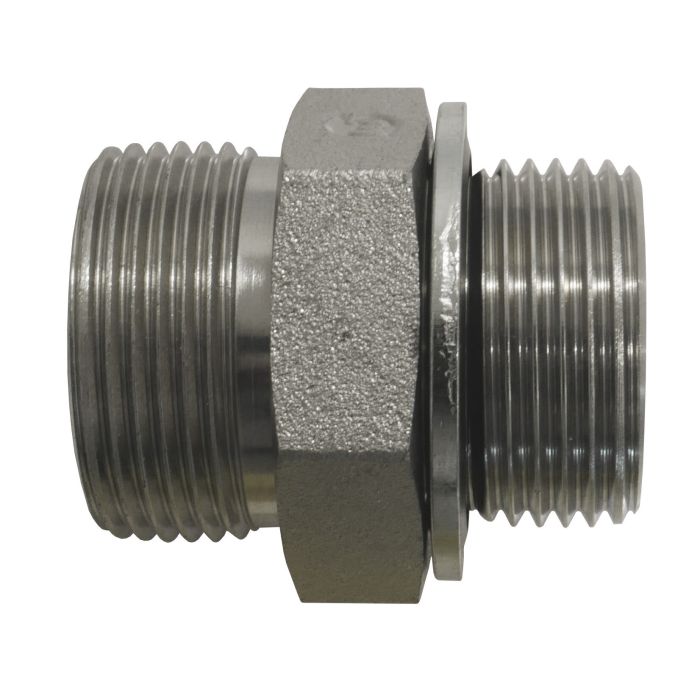

06MFS-06MBSPP STRAIGHT

Description & Features

This straight fitting, part number 06MFS-06MBSPP STRAIGHT, features a male face seal O-ring (SAE J1453) on one end and a male BSPP with a 60-degree seat on the other. It is constructed from steel for durability.

The fitting has a 11/16-16 thread size on the B1 end and a 3/8-19 thread size on the B2 end. This Brennan assembled BSPP bonded seal, part number 9900-06, utilizes an NBR O-ring seal material.

SKU: FS7002-06-06-BS

Supplier Part Number (MPN): FS7002-06-06-BS

Specifications

Additional Information Bonded Seal	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Male BSP, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male BSPP	Dimension Standards SAE J1453	Dimensions 33 mm L	Fitting Type Adapter	Hex Size 22 mm	Material Steel	Material Construction Steel	Seal Material NBR	Series FS7002 Series	Thread Size 11/16-16 x 3/8-19

Product Questions & Answers (1)

Question by: Denise S on Oct 20, 2025, 7:12 AM

What kinda seal does this use?

Answer by: Customer Support on Oct 21, 2025, 5:25 PM

This straight fitting uses a Brennan assembled BSPP bonded seal, part number 9900-06, with an NBR O-ring seal material.
