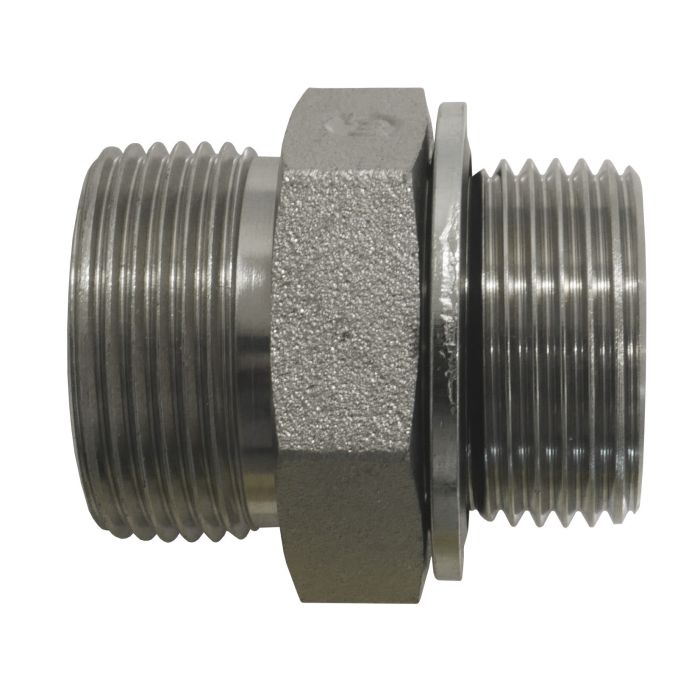

main product photo

06MFS-08MBSPP STRAIGHT

Ask A Question

Description & Features

Designed for hydraulic systems requiring a transition between SAE face seal and British Standard Parallel Pipe connections, the 06MFS-08MBSPP Straight is a steel straight adapter from Brennan Industries. One end features a 11/16-16 Male Face Seal O-Ring port conforming to SAE J1453, while the opposite end is a 1/2-14 Male BSPP fitting with a 60-degree seat. An NBR bonded seal is included, providing a reliable sealing interface at the BSPP end without the need for additional sealing compounds.

Constructed from steel and part of Brennan's FS7002-BS series, this adapter is well-suited for use in hydraulic circuits where face seal and BSPP threaded components must be joined in a straight configuration. The NBR O-ring material offers compatibility with common hydraulic fluids. California residents should note that this product carries a Proposition 65 warning.

SKU: FS7002-06-08-BS

Supplier Part Number (MPN): FS7002-06-08-BS

Specifications

Additional Information
Bonded Seal
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male BSPP
Dimension Standards
SAE J1453
Dimensions
37.5 mm L
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Steel
Seal Material
NBR
Series
FS7002 Series
Thread Size
11/16-16 x 1/2-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Joyce J on Sep 2, 2025, 4:31 PM
Just want to make sure, this will work to connect a SAE face seal to a BSPP fitting, right?
Answer by: Customer Support on Sep 4, 2025, 6:12 AM
That's correct. This straight adapter is designed specifically for hydraulic systems that need a connection between an SAE face seal and a British Standard Parallel Pipe.
