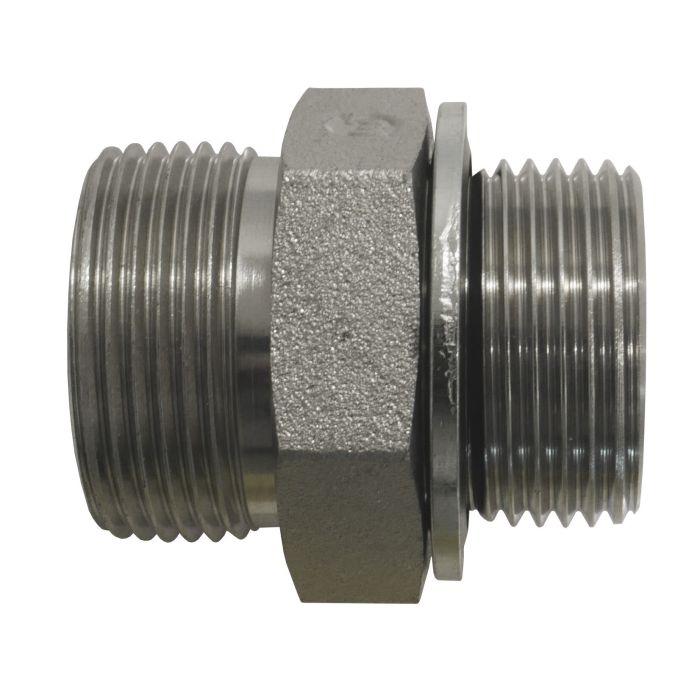

08MFS-04MBSPP STRAIGHT W/BONDED SEAL

Description & Features

Designed for cross-standard hydraulic connections, the 08MFS-04MBSPP Straight W/Bonded Seal is a straight steel adapter fitting that bridges a male face seal O-ring end (13/16-16, SAE J1453) on one side with a male BSPP 1/4-19 thread with a 60-degree seat on the other. The bonded seal assembly, part number 9900-04, provides a reliable sealing interface at the BSPP end, making this fitting well suited for systems that combine SAE and BSP-standard components.

Constructed from steel with an NBR O-ring seal material, this fitting is part of Brennan Industries' Fs7002-Bs series. The straight configuration simplifies inline connections where no angular offset is needed. California residents should note that this product carries a Prop 65 warning.

SKU: FS7002-08-04-BS

Supplier Part Number (MPN): FS7002-08-04-BS

Specifications

Additional Information Bonded Seal	Connection Type Male BSP, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male BSPP	Dimension Standards SAE J1453	Dimensions 36.4 mm L	Fitting Type Adapter	Hex Size 22 mm	Material Steel	Material Construction Steel	Seal Material NBR	Series FS7002 Series	Thread Size 13/16-16 x 1/4-19

Product Questions & Answers (1)

Question by: Shane P on Sep 21, 2025, 7:45 AM

Will this here fitting work to join somethin' with SAE J1453 to somethin' with a BSPP thread?

Answer by: Customer Support on Sep 23, 2025, 6:28 AM

Designed to bridge connections across different standards, this fitting is made to join a male face seal O-ring end (SAE J1453) to a male BSPP thread.
